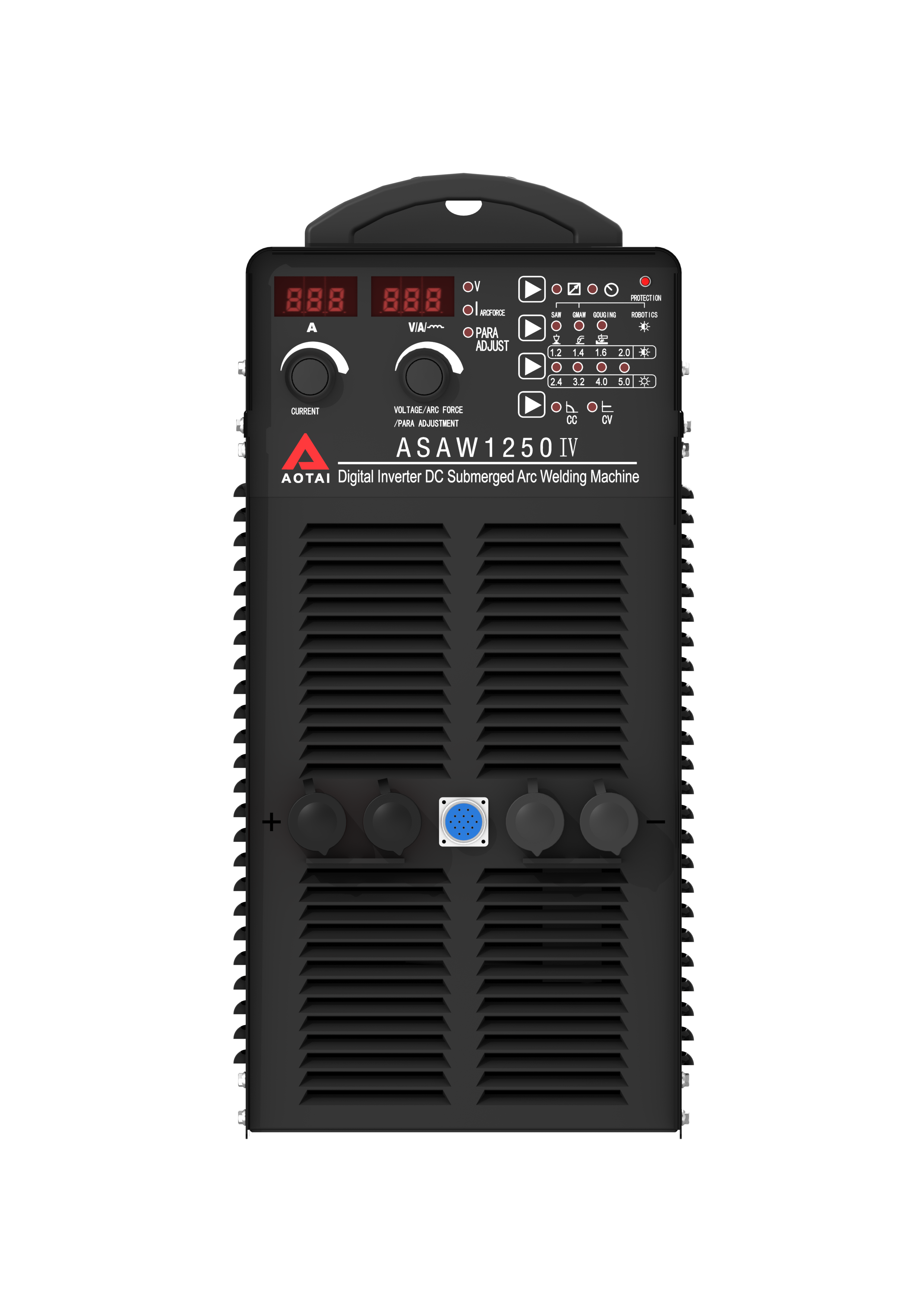

ASAW-1000/1250IV

ASAW-IV is used in pipeline prefabrication, cladding, working with robot and automation equipment, high-power gas shielded welding, repairing wear resistant material and other industries, It enjoys great popularity for it’s comprehensive functions and multi-purpose performance.


Output t36.png t33.png 20210929155048852.jpg@!jw1200       Input t39.png  60 .png


Process t23.jpg t26.jpg t21.jpg t60.png


Materials t45.png t46.png                          20210929155043253.jpg@!jw1200  20210929155047718.jpg@!jw1200

Share:

Inquiry
Features
Specification
Application
Accessories
Download
  • Multiple process: MMA, GMAW, SAW, and gouging

  • CC and CV characteristics: suitable for various applications

  • Flexible combination: plenty of choices of configurations

  • Multiple SAW modes: thick-wire, thin-wire, strip cladding, twin-wire single-arc, open-arc flux-cored wire, and others

  • Supporting various GMAW processes: single-wire and twin-wire single-arc of solid-wire welding, FCAW, and others

  • Abundant interfaces for robotic applications: equip analog or digital interfaces and support the extension of robot interfaces to realize robotic SAW and robotic GMAW processes

  • Abundant interfaces for automatic applications: equipping analog or digital interfaces to match with PLC and others to form a welding automation system

  • Wide application: pipeline, steel fabrication, wear-resisting layer cladding, and other industries



ASAW1000 IVASAW1250 IV
Rated input voltage /frequency (V/Hz)3 phase, 480V±10%, 60Hz
Rated input capacity (KVA)5569
Rated input current (A)65.785.5
Duty cycle (40℃)100%@1000A100%@1250A
OCV (V)8492
Adjustable current range (A)60-100060-1250
Adjustable voltage range (V)14-5022-44
Wire size (mm)1.2-6.0 /3.0-5.01.2-1.6 /3.0-6.0
Protection classIP21S
Insulation classH
Dimension (mm)788*366*815788*366*846
Weight (kg /lb)95 /209.8100/220.9

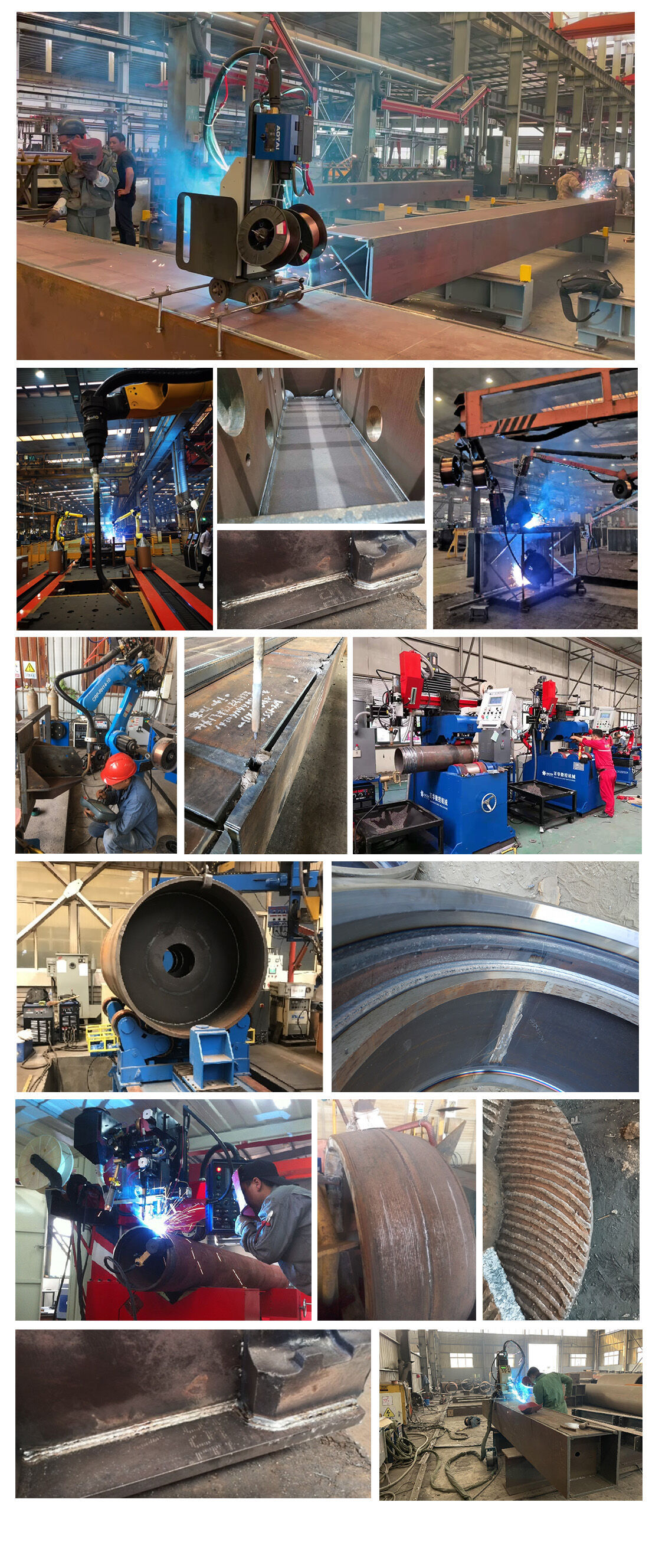

ASAW 1000 IV.jpg


  • 1 Power source

  • 1 Connected primary cable L=3m

  • 2 Ground cable L=5m

  • 2 Welding cable L=15m

  • 1 Control cable L=16m

  • 1 Tractor
