COBOT
Aotai Cobot Solutions are the robot system that can be deployed quickly. Compared with traditional welding robot solutions, Aotai Cobot Solutions possess advantages of flexible deployment, broad adaptation, and low cost.

Share:

Inquiry
Features
Specification

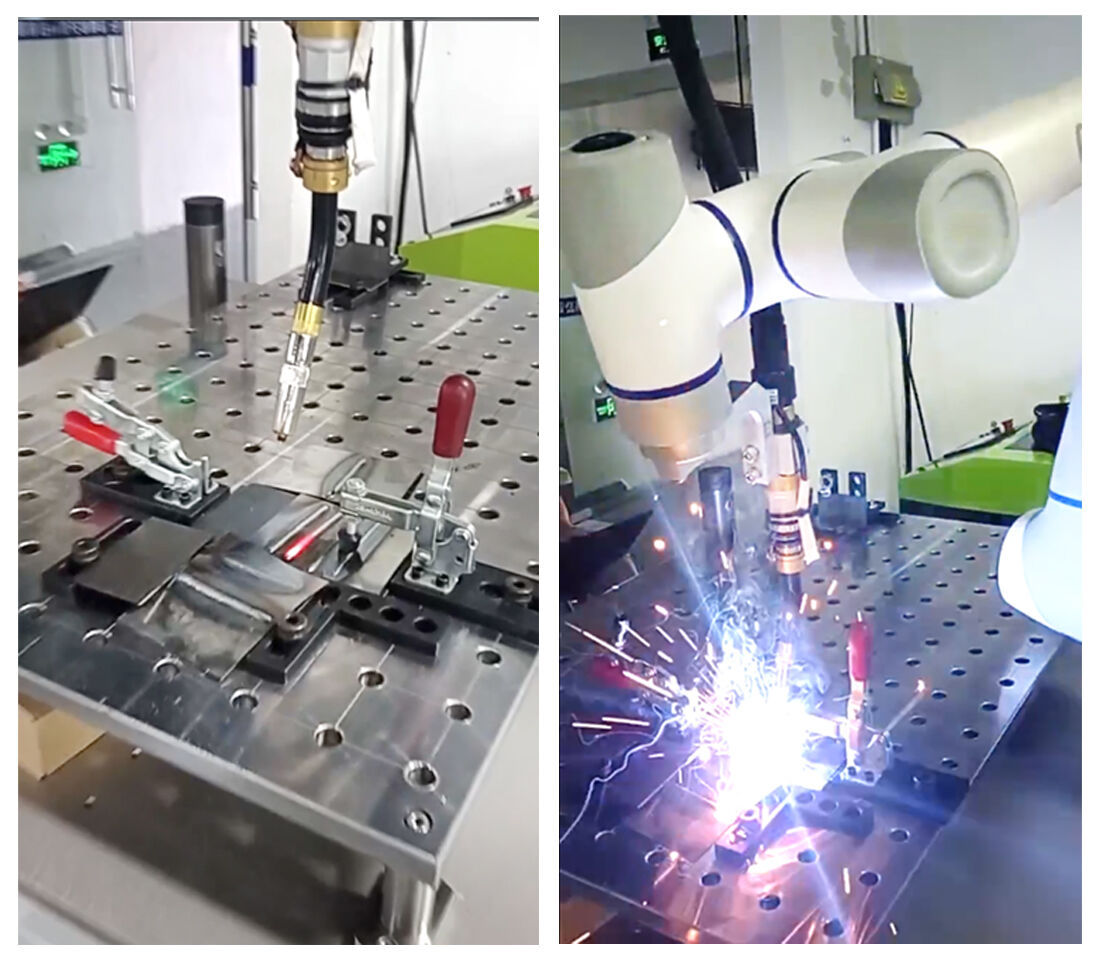

Application
Accessories
Download
  • Easy to use: full-platform operation terminal, modular-based and rapid programming

  • Drag-and-drop teaching: intuitive and convenient, rapid locating

  • Advanced welding process package: good interconnection and intercommunication with welding machines, and perfect appearance of welding seams owing to multiple oscillating types

  • Open hardware interfaces: plug-in-like components, easy to deploy in various working conditions and environments

  • Error-free human-robot collaboration: to ensure safe welding operations, automatic collision detection, and highly sensitive responding

  • Easy to mount and move: small in size, light in weight, mounting only takes 10 minutes

  • IP54 level protection: adaptive to the harsh environment

  • Long service life: 32000-hour designed service life

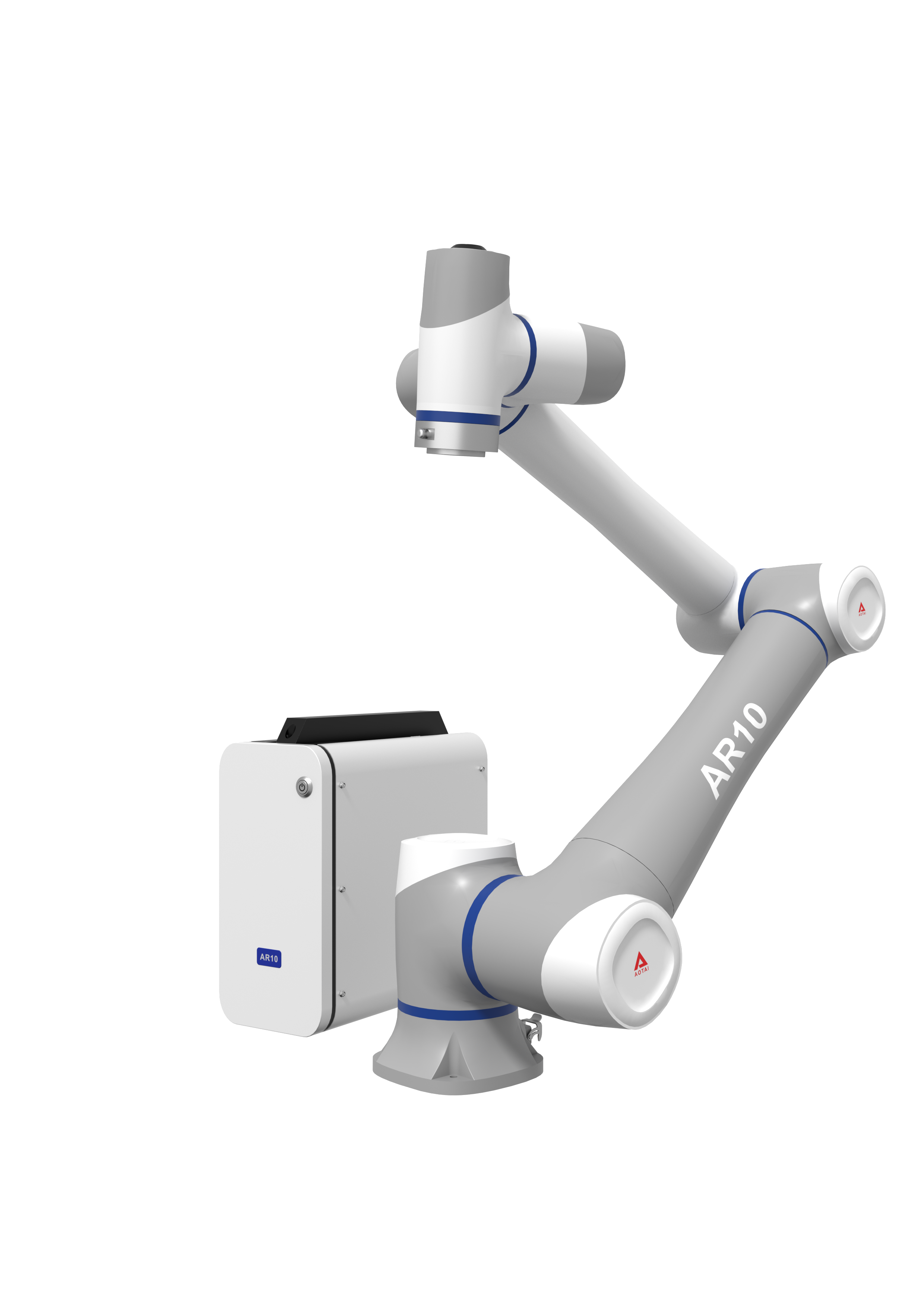

ModelAR 10
Weight (kg)40
Maximum Payload (kg)10

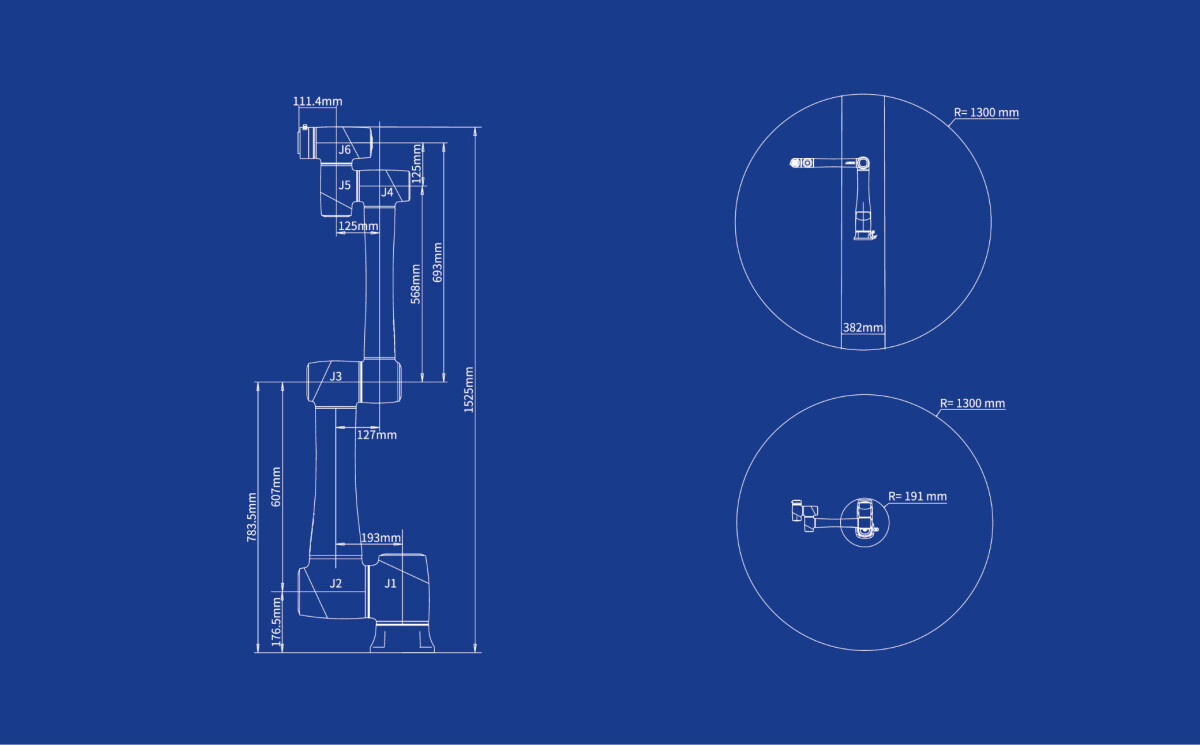

Working Radius (mm)1300
Max Reach (mm)1525
Rated input voltage /frequency (V/Hz)1 phase, AC220V, 50 /60Hz
Maximum Speed of TCP (m/s)4
Joint RangesJ1±360°
J2±360°
J3±160°
J4±360°
J5±360°
J6±360°
Maximum Speed of JointsJ1/J2120°/s
J3/J4/J5/J6180°/s
End-Effector I/O InterfaceDI/DO/AI2
AO0
Communication InterfaceCommunicationRS485; Devicenet
Communication InterfaceDI16
Controller I/ODO/DI16
AI/AO2
ABZ Incremental Encoder1
Repeatability±0.03 mm
CommunicationTCP/IP, Modbus, Wi-Fi
IP RatingIP54
Temperature0℃-45℃
Power350 W
MaterialsAluminum alloy, ABS plastic
