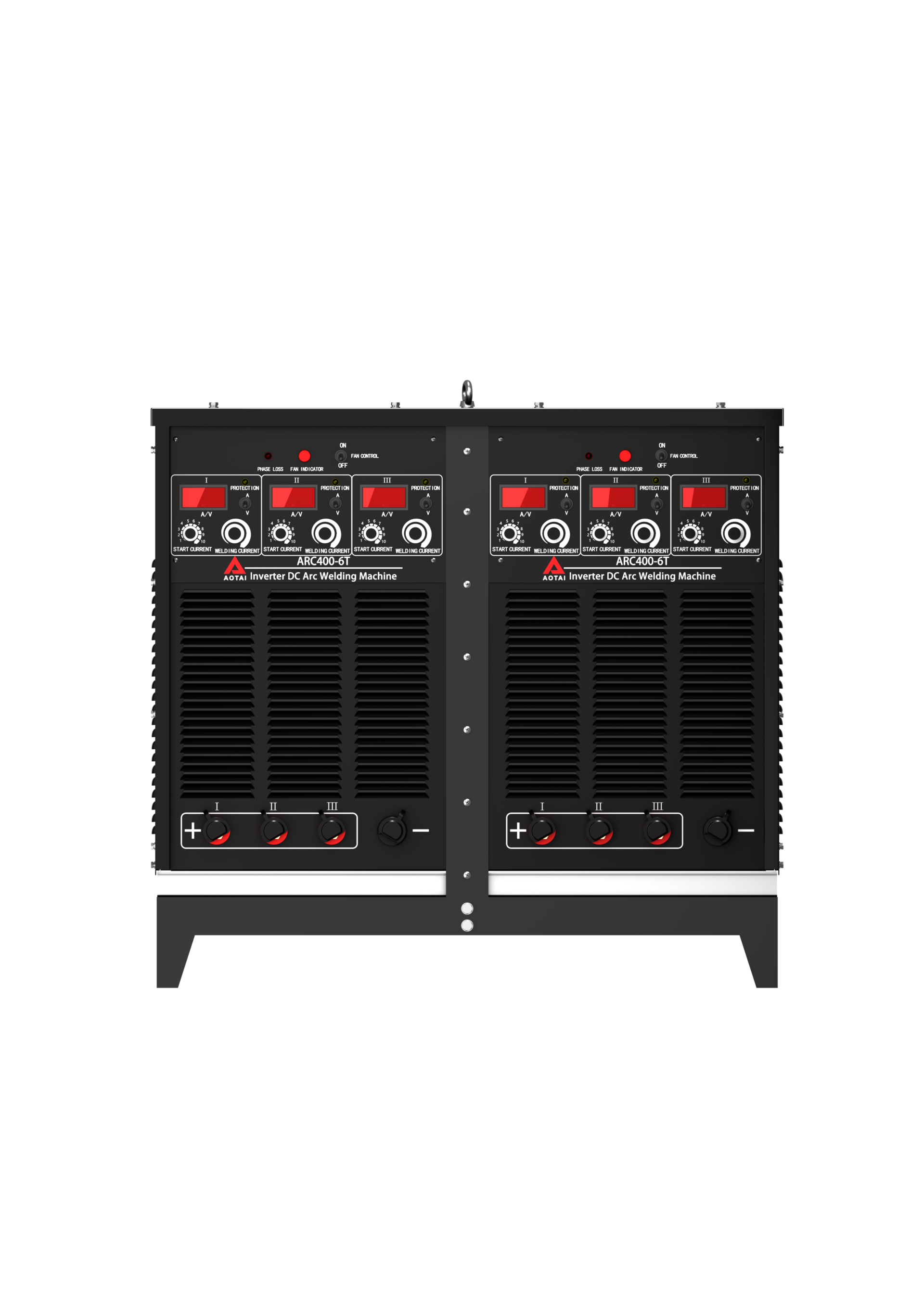

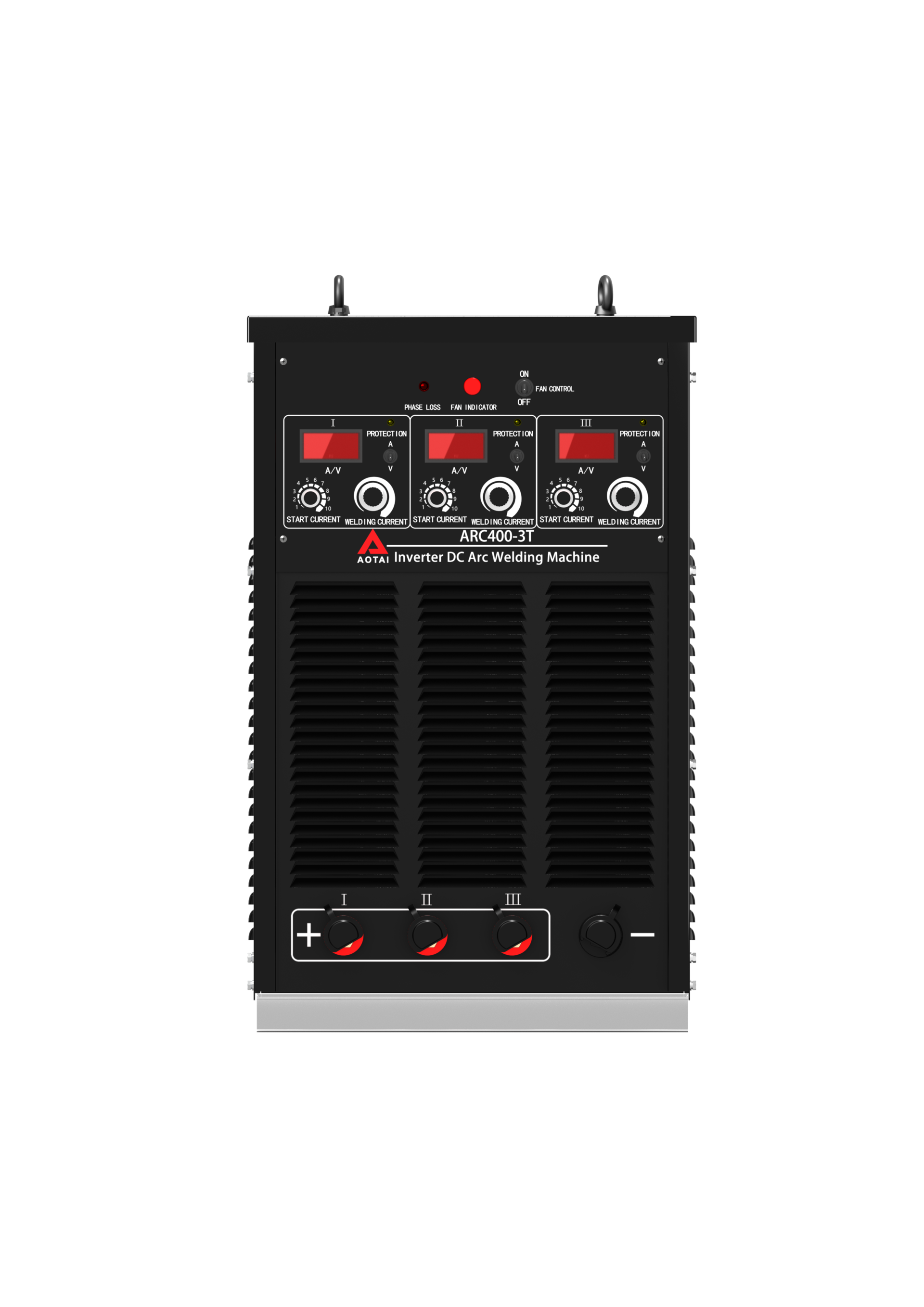

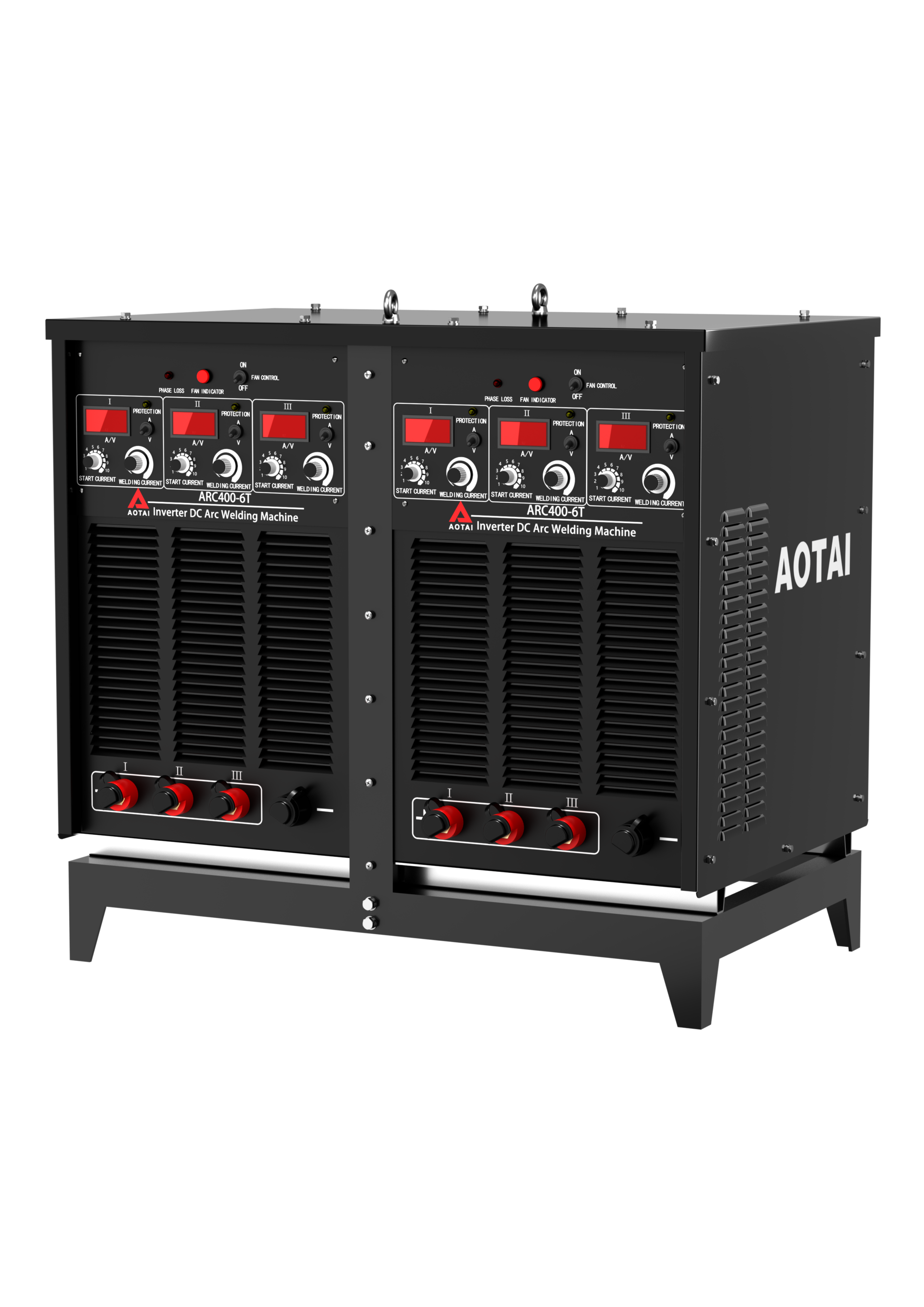

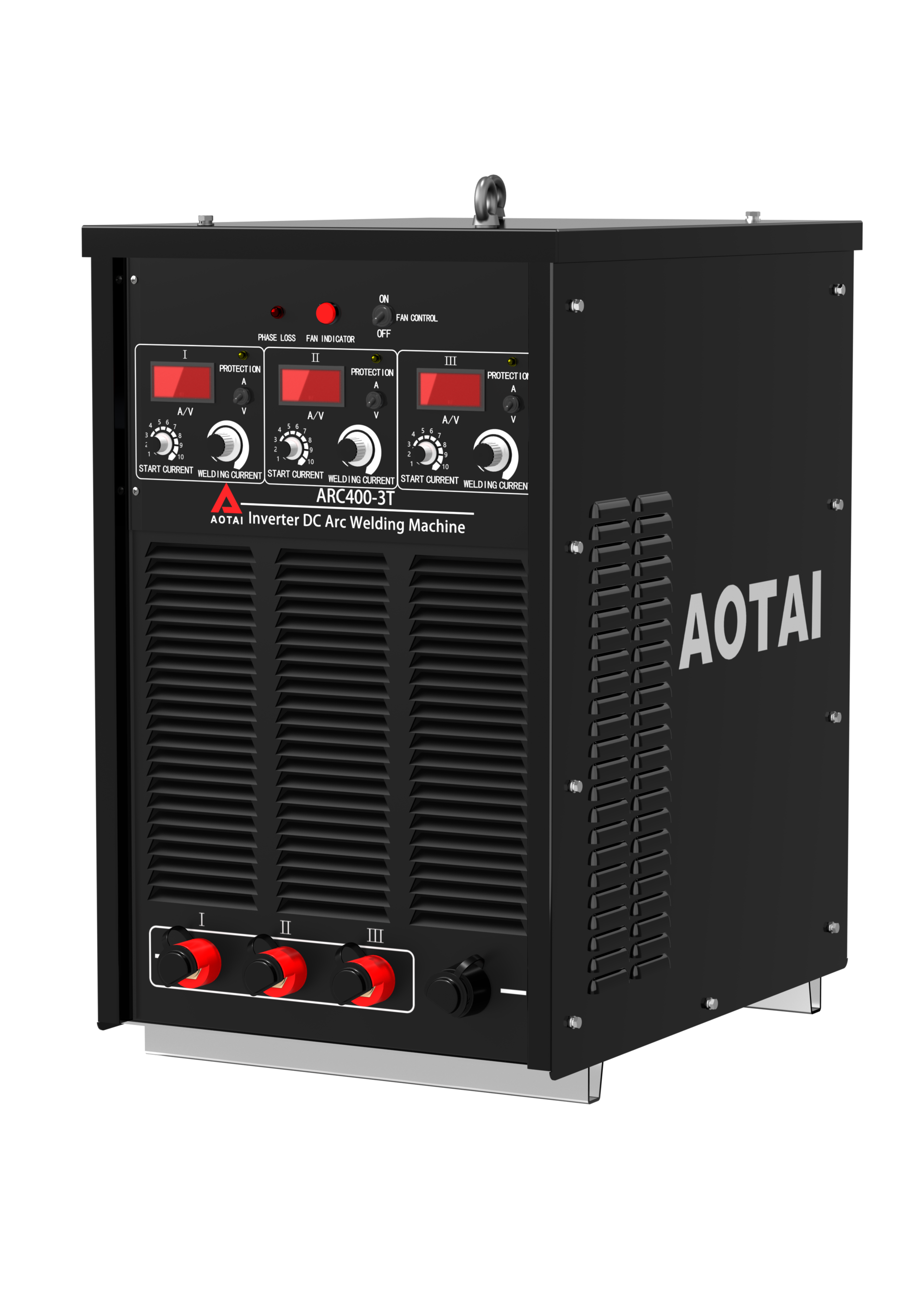

ARC400-3T/6T

ARC-T series is multi-operators model, it is new generation developed specially to meet industry requirement. The ARC-T integrates three or six single ARC units into one case. Three or six independent outputs allow corresponding number of welders to work at the same time.


Output t34.png t33.png 20210929155048852.jpg@!jw1200       Input t39.png  60.png       Process t21.jpg  t60.png


                                                                                                                             20210929155047718.jpg@!jw1200


Share：

Inquiry
Features
Specification

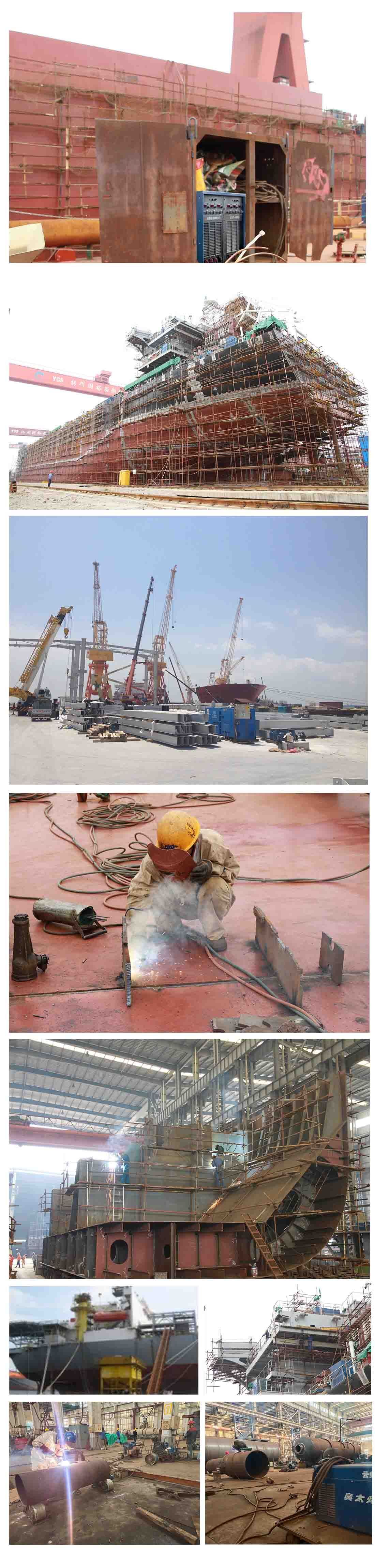

Application
Accessories
Download

  • Highly integrated: 3 in 1 or 6 in 1, convenient to manage and move

  • Simultaneous operation: operated by multiple people, no interference, and independent running

  • Robust performance: gouging process, parallel output up to 1200A/2400A



ARC400-3TARC400-6T
Rated input voltage/frequency (Hz)3 phase, 480V±10%, 60Hz
Rated input capacity (KVA)18.7*318.7*6
Rated input current (A)22.5*322.5*6
Duty cycle (40̊C)60%@400A*360%@400A*6
OCV (V)6868
Output current range (A)20-400*320-400*6
Efficiency89%
Protection classIP21S
Insulation classH
Dimension (mm)675*505*850675*1045*1000
Weight (kg/lb)120 /265234 /516.8



Standard Equipments（3T）

  • 1 Connected primary cable L=3m

  • 3 Electrode holders

  • 3 Copper connectors

  • 2 Copper connectors

Standard Equipments（6T）

  • 2 Connected primary cable L=3m

  • 6 Electrode holders

  • 6 Copper connectors

  • 4 Copper connectors
