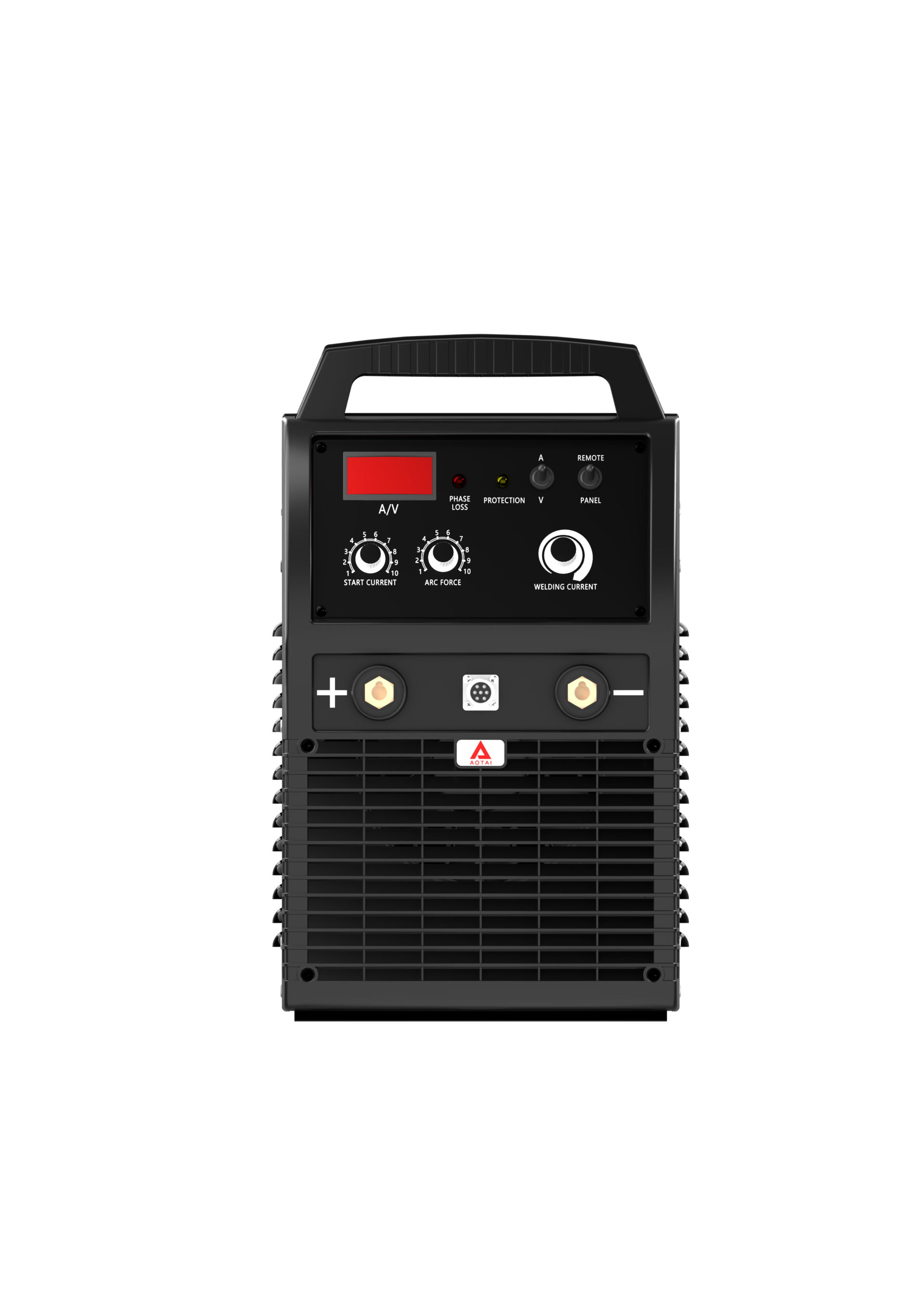

ARC-315/400/500/630

ARC series gives a highly stable DC arc and ensures perfect welding in all situations and positions. lt is new generation developed specially to meet harsh industry requirement and performs full power against voltage fluctuation and long distance welding (up to 100m).


Output t34.png  t33.png  20210929155048852.jpg@!jw1200       Input t39.png  60.png       Process t21.jpg  t60.png


                                                                                                                             20210929155047718.jpg@!jw1200

Share:

Inquiry
Features
Specification

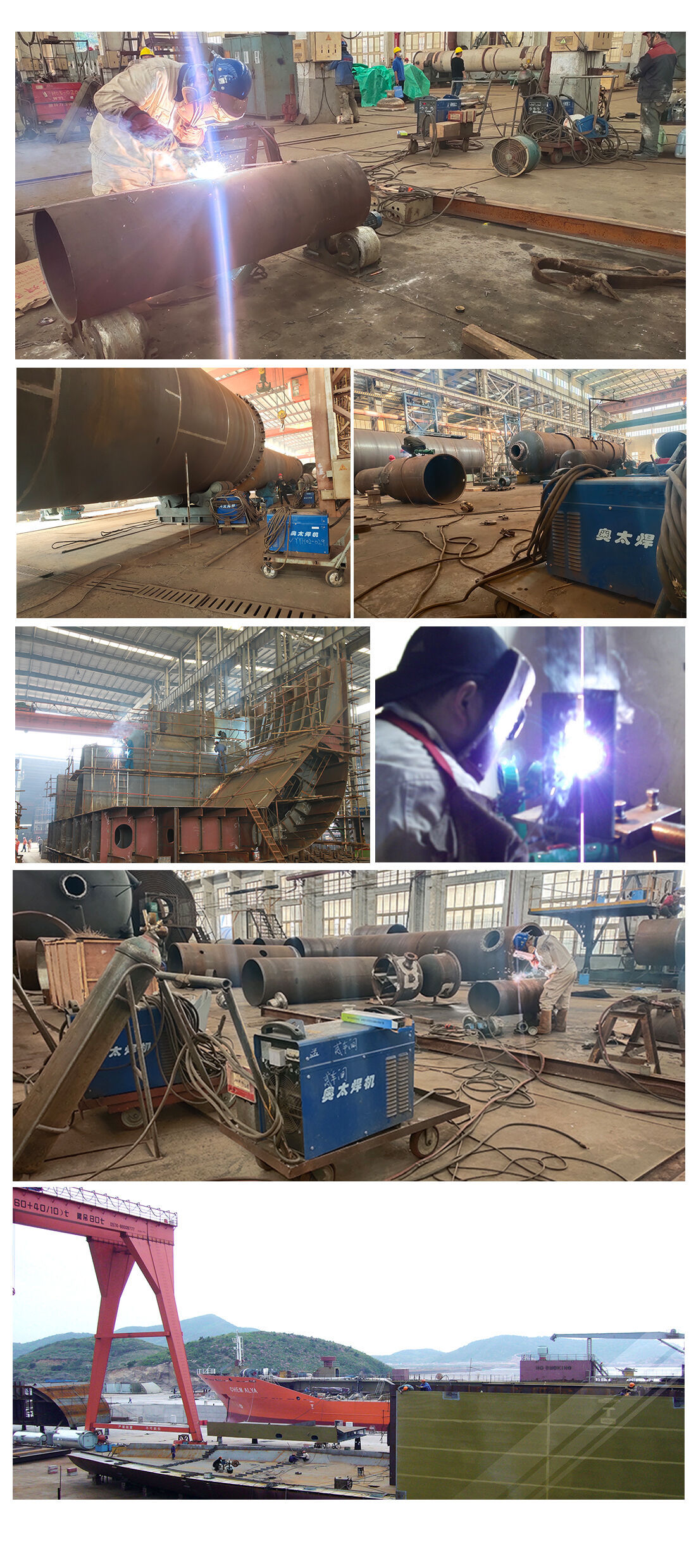

Application
Accessories
Download

  • Suitable for BAS & RUT electrodes welding
  • Hot arc starting current enjoys stepless adjustment and 100% arc starting success rate

  • The continuously adjustable arc force in MMA mode provides effects of anti stick, unbroken arc and ensures stable arc for long cable welding

  • The current and voltage enjoy digital display

  • Wired remote control and optional wireless control

  • Protection against overheat, over-current and over-voltage

  • Optional VRD function

  • Welding cable can reach as long as 100m

  • Efficiency can reach up to 89%

  • Full-bridge inverter soft switch control technology, double IGBT modules and quick recovery diode module;

  • PCB is processed with three-proofing lacquer and the drive board is processed with waterproof rubber

  • Optional generator powering








ARC315ARC400ARC500ARC630
Rated input voltage/frequency (Hz)3 phase, 480V±10%, 60Hz
Rated input capacity (KVA)13.618.724.634.2
Rated input current (A)16.422.529.641.2
Duty cycle (40̊C)60%@315A60%@400A60%@500A100%@630A
OCV (V)68688396
Output current range (A)20-31520-40020-50050-630
Efficiency89%
Protection classIP21S
Insulation classH
Dimension (mm)655*324*546655*324*546655*324*546686*322*584
Weight (kg/lb)43 /9543 /9550 /110.458 /128.1



  •  1 Power source

  •  1 Connected primary cable L=3m

  •  1 Welding cable L=3m

  •  1 Ground cable L=3m
