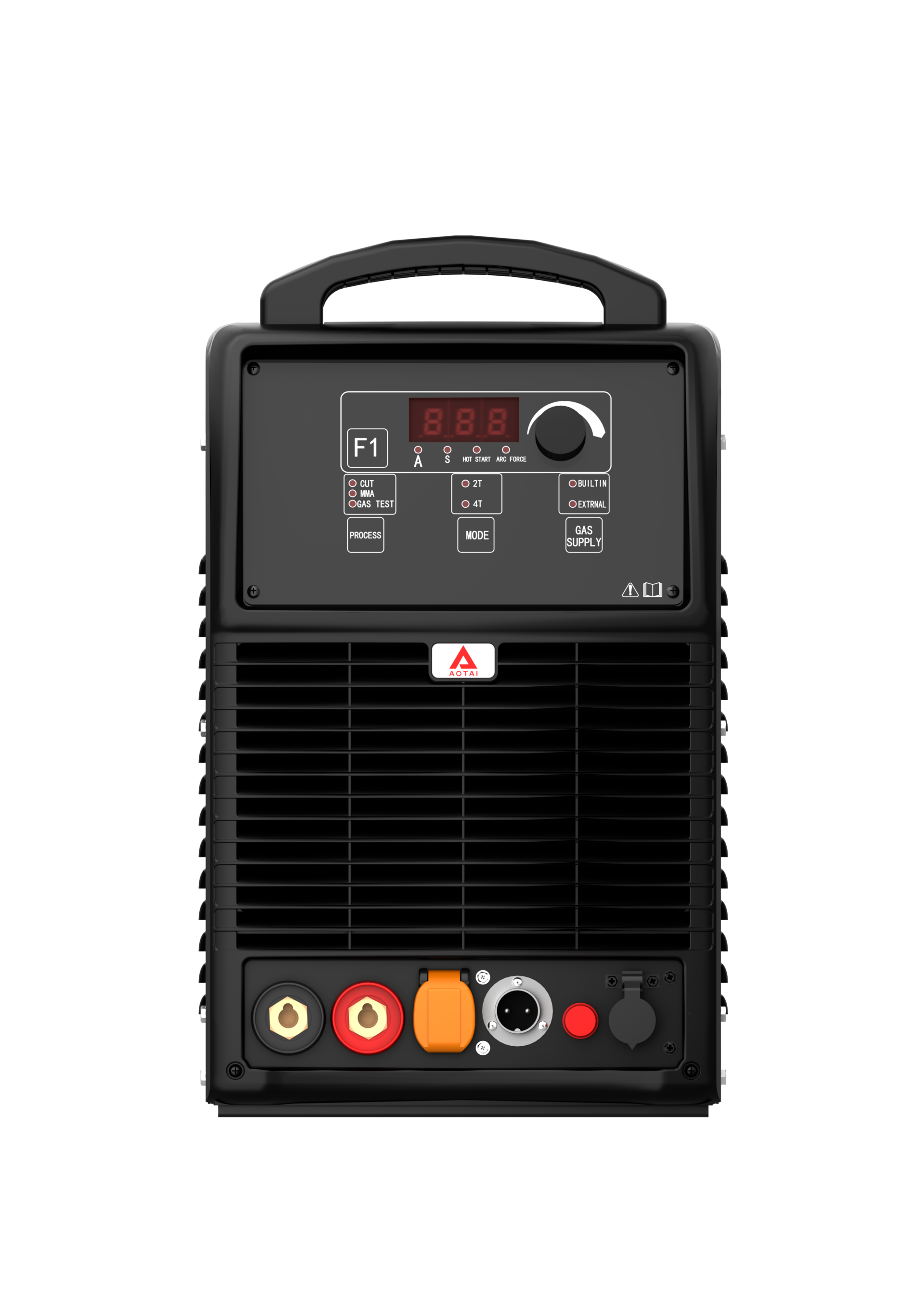

ACUT-120Y

ACUT120Y cutting equipment is a metal cutting equipment with high efficiency, high quality and low cost. It integrates cut and weld functions to one  machine, which can be applied to perform manual cutting and CNC cutting. It equips built-in air compressor, which makes it become the portable type edge tool in site installation and fabrication industries.


Output t34.png t33.png t58.png       Input t39.png  60 .png       Process t27.jpg  t21.jpg


Materials t45.png t46.png t47.png t48.png                                                   20210929155043253.jpg@!jw1200  20210929155047718.jpg@!jw1200


Share:

Inquiry
Features
Specification
Application
Accessories
Download
  • MMA welding process: 400A welding current, hot arc start with adjustable arc force

  • Built-in compressor: high quality and high power, long-time stable welding

  • Excellent cutting ability: concentrated energy ensures smooth and neat cutting surface

  • Selectable air source: internal air source and external air source, varies requirements from customers can be met

  • Multiple protection: ensuring stable operation of air compressor

  • CNC interface: CNC interface and multiple functions make it enjoy great popularity

  • Outstanding cut thickness: as for carbon steel cutting, an edge starts is  appicable for no more than 40mm, a pierce starts is applicable for no more than 20mm

  • Long-cable cutting torch: up to 15m

  • Easy arc starting: the maximum arc starting height is 10mm



ACUT120Y
Rated input voltage/frequency (Hz)3 phase, AC480V±10%, 60Hz
Rated input capacity (KVA)19
Rated input current (A)23
PlasmacuttingCutting current range (A)30-120
OCV (V)340
Duty cycle (%)60
Maximum cutting thickness/CS (mm)40
Quality cutting thickness/CS (mm)1-20
MMAWelding current range(A)50 - 400
OCV (V)70
Arc force range (A)10 - 200
Duty cycle (%)35
Dimension (mm)758×322×630
Weight (Kg)65
IP classIP21S
Insulation classH





  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Ground cable L=3m with clamp and quick plug

  • 1 Pressure-reducing valve

  • 1 Plasma torch
