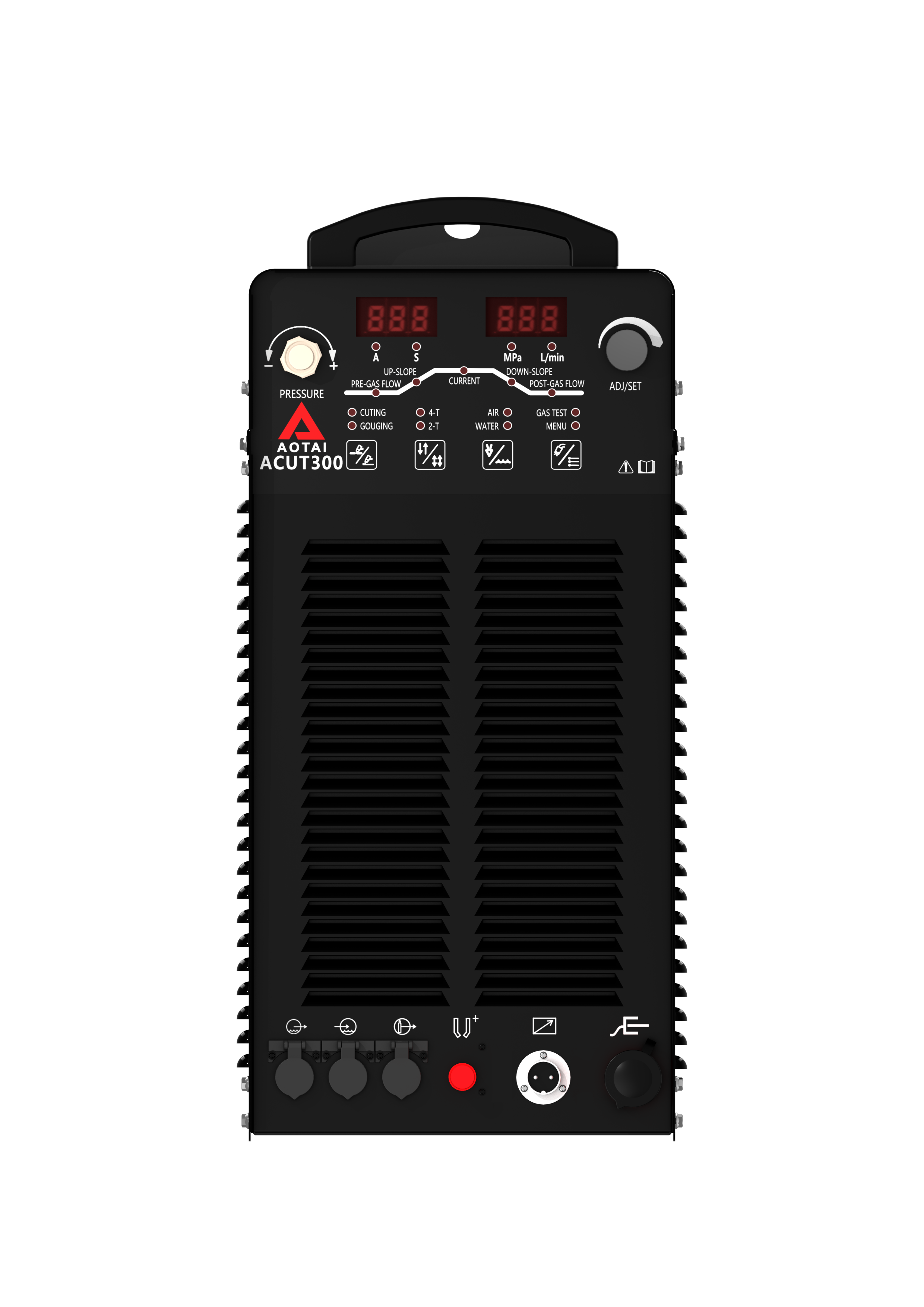

ACUT-300/400

ACUT-300/400/500 cutting machine is a sharp tool for thick plate cutting, which enjoys the benefits of large cutting thickness, fast cutting speed, and the ability to cut almost all materials. ACUT300/400/500 is the best choice for the production and fabrication of thick-plate workpieces.


Output t34.png  t33.png       Input t39.png  60 .png       Process t27.jpg  t59.png


Masterials t45.png t46.png t47.png t48.png                                           20210929155043253.jpg@!jw1200  20210929155047718.jpg@!jw1200


Share：

Inquiry
Features
Specification
Application
Accessories
Download

  • Outstanding controlling performance: full digital control, continuous adjustable parameters such as pre-gas, post-gas, up-slope and down-slope

  • Best choice for thick plate cutting: the cutting thickness of ACUT300 is 100mm; the cutting thickness of ACUT400 is 110mm, the cutting thickness of ACUT500 is 120mm

  • Humanized air control design: digital display of air pressure; air regulation function is set on front panel, which is easy to operate

  • Digital display of liquid flow

  • Fault self-diagnosis function: equipping error code display and automatic protec- tion, for overheat, lack of coolant, lack of air, input undervoltage and so on

  • Be equipped with automation equipment: the standard configuration includes machine interface, which is convenient to form automatic cutting equipment

  • Highly reliable: semi-independent air duct design and anti-dust design

  • 100% duty cycle


ModelACUT300ACUT400ACUT500
Primary power voltage /frequency (V/Hz)3 phase, AC480V±10%, 60Hz
Rated input capacity (KVA)7495123
Rated input current (A)88.7112.4148
Output current range (A)60-30060-40060-500
Output voltage range (V)104-200
Rated duty cycle (%)100
Open circuit voltage (V)380
Efficiency (%)≥89%
Air pressure (bar)4.5-6
Air flow (L/min)≥250
 Maximum cutting thickness/CS (mm)80 110120
  Cutting thickness in quality/CS (mm) ≤70≤90≤100
Dimensions (mm3)783*364*849
Weight (Kg/lb)116/255.7 120/264.6125/275.6
Protection classIP21S
 Insulation classH

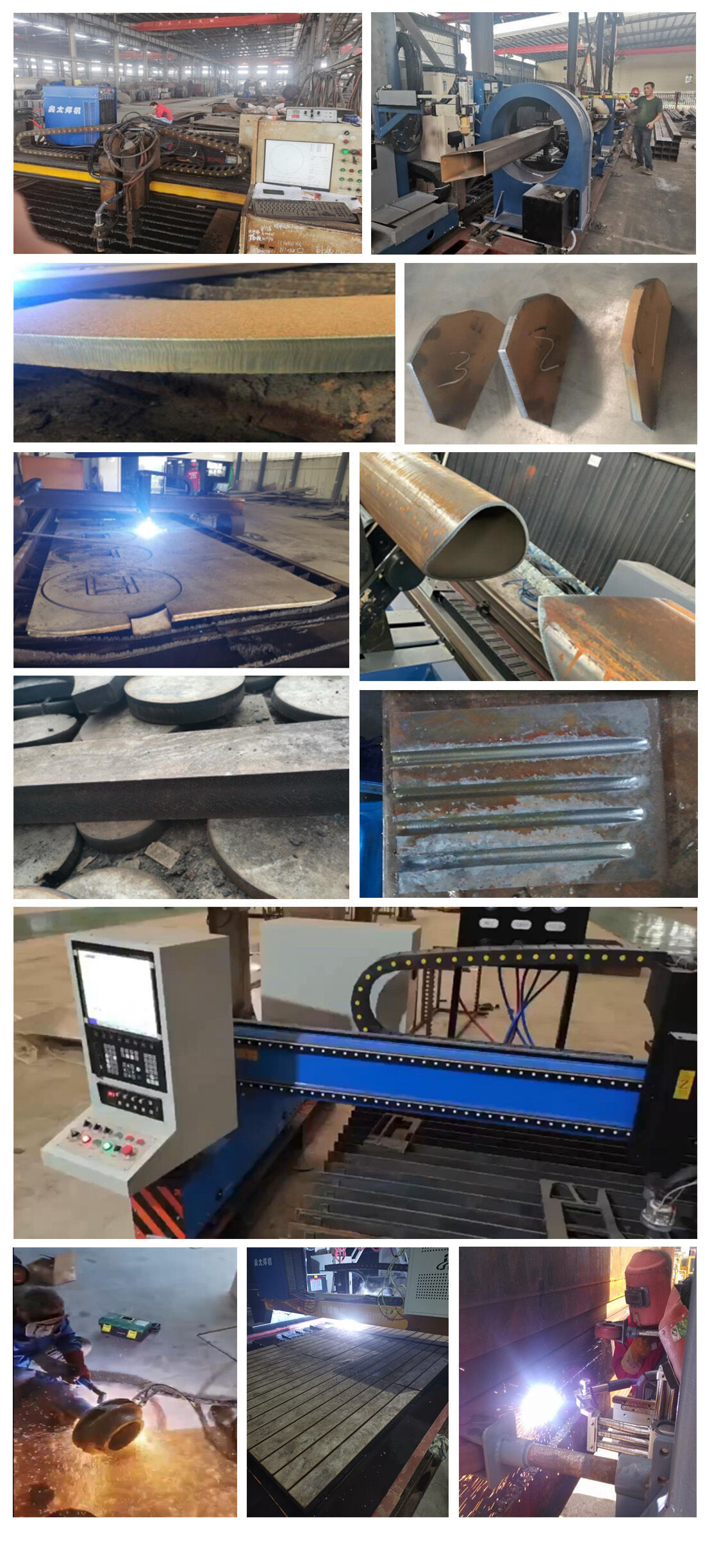

ACUT 300 400.jpg

  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Ground cable L=3m

  • 1 Pressure-reducing valve

  • 1 Plasma torch

  • 1 Refrigerating machine
