  • More user friendly

     USB Port

     31-64M memory for user's programs

     Built-in library of commonly used figures

     Free FastCAM software

  • Fast cutting speed

     Can operate at a speed as high as 6 meters per minute (20 feet /minute)

  • Larger cutting area

     CNC cutting system can cut as wide as 2.0 meters (6.6ft), as long as 15 meters (48ft)

  • Easier maintenance

     Check up and maintenance of the contorller can be done simply by removing the top cover

  • Motor enable/disable button

     This feature allows the user to enable or disable the motors


AOCUT CNC–1500 x 3000
Rated input voltage (V)1 phase, AC230V
Frequency (Hz)60
Rated input power (W)180
Display7 ˝ Color LCD
Range of effective cutting (mm)X-Axis: 1500 Y-Axis: 3000
Travelling speed (mm /min)0-4000
Mode of cuttingFlame or Plasma
Combustive gasOxygen
Combustive gas pressureMax. 1.5 Mpa
Cutting speed (mm /min)0-600 (Flame)   0-3000 (Plasma)
Cutting thickness (mm)5-150 (Flame)    Depends on plasma power source (Plasma)
Cutting softwareFastCAM standard version
Plasma power sourceACUT120a /ACUT200
Total machine weight (kg /lb)70.5 /155.4

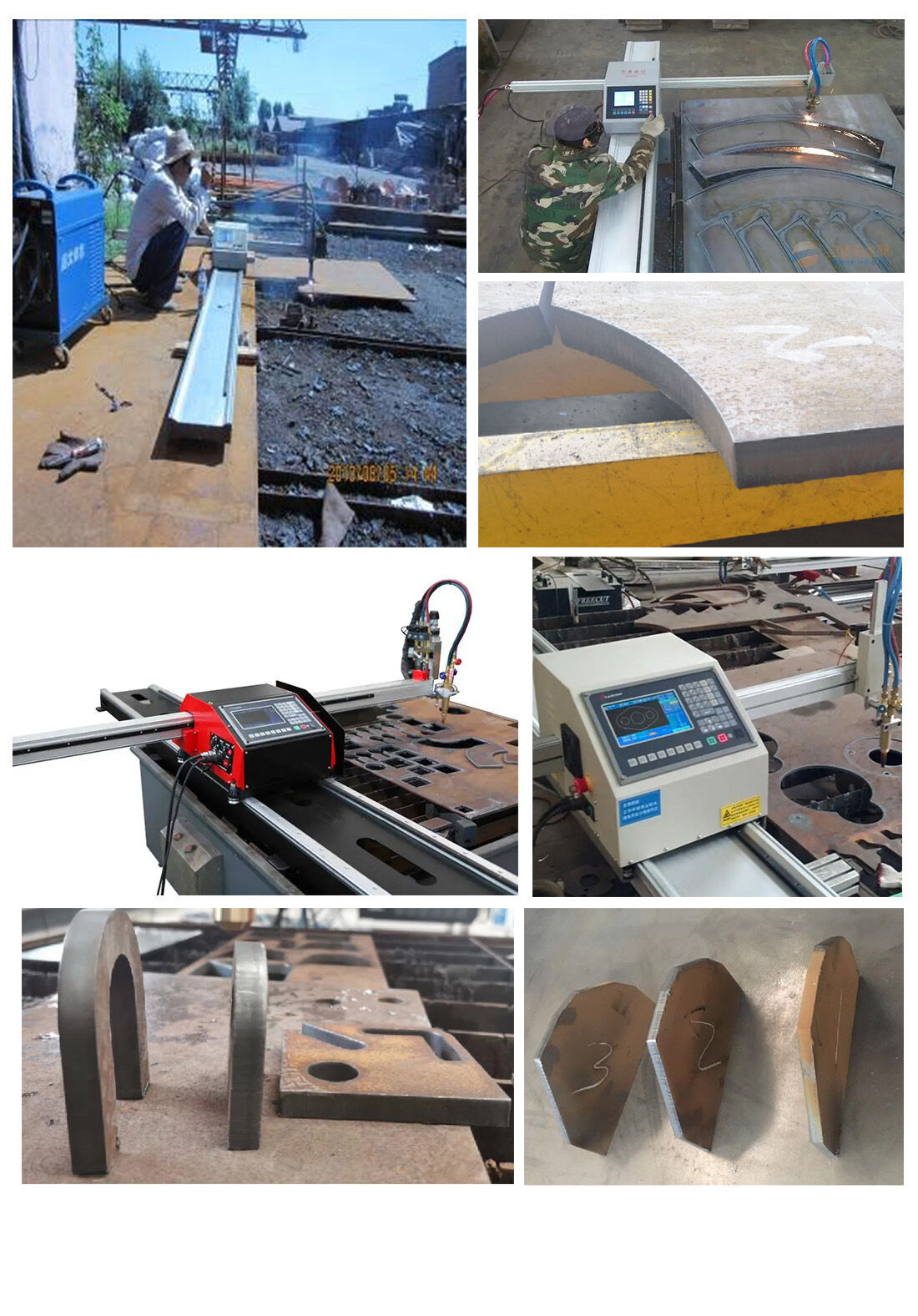

ACUT1000 1250 CNC.jpg
