CUTTER

‹

›

‹

  • ACUT-60 /100 /120
  • ACUT-60 /100 /120

›

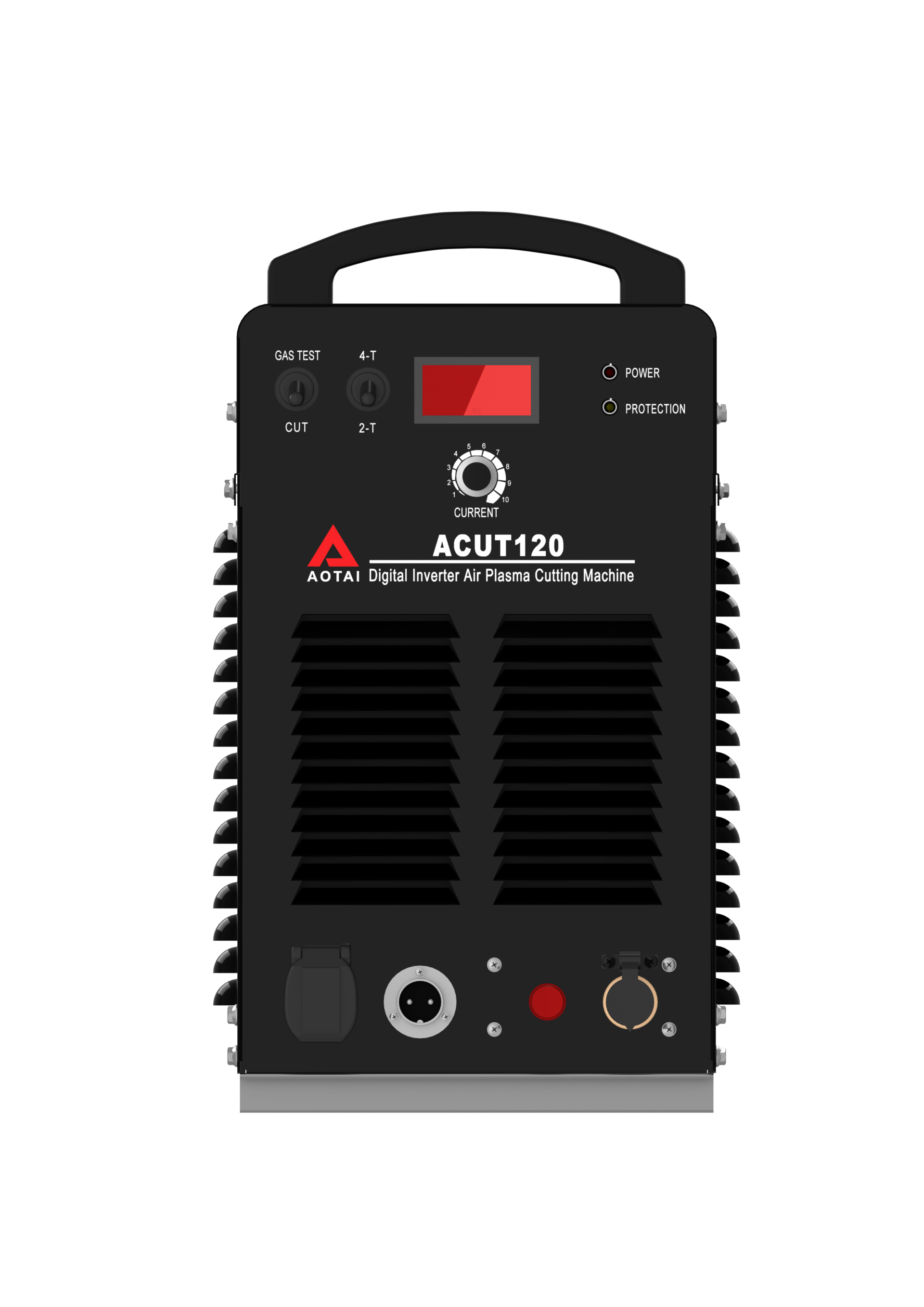

ACUT-60 /100 /120

ACUT series is designed for professional use in heavy duty application. ACUT power source can be used for manual cutting with HF ignition to provide best arc start and avoid defect in arc start process. ACUT series can show best result for cutting steel with thickness up to 35 mm.


Output t34.png  t33.png       Input t39.png  60 .png       Process t27.jpg


Materials t45.png t46.png t47.png t48.png                                 20210929155043253.jpg@!jw1200  20210929155047718.jpg@!jw1200

Share：

Inquiry
Features
Specification
Application
Accessories
Download

  • Light in weight: inverter technology makes it easy to be maintained or carried

  • Non-stop work: air-cooled power source

  • Multiple applicable materials: carbon steel, stainless steel, copper, aluminum, and others

  • Highly reliable: self-diagnosis function and multiple protections

  • Friendly for plasma torch: post flow for additional cooling of plasma torch

  • Highly stable: the expanded service life of the fan and reduced fault rate owing to the smart fan feature



ACUT60ACUT100ACUT120
Rated input voltage/frequency (Hz)3 phase, 480V±10%, 60Hz
Rated input capacity (KVA)7.514.416.5
Rated input current (A)917.319.8
Duty cycle (40̊C)60%@60A60%@100A60%@120A
OCV (V)319319340
Output current rang (A)30-6030-10030-120
Arc ignition methodHF contactHF pilotHF pilot
Maximum cutting thickness (mm)153035
Clean cut thickness (mm)1-81-121-18
Air pressure (Mpa)0.45-0.6
Protection classIP21S
Insulation classH
Dimension (mm)501*232*495576*297*557576*297*557
Weight (kg /lb)28.5 /6343.2 /95.443.5 /96.1

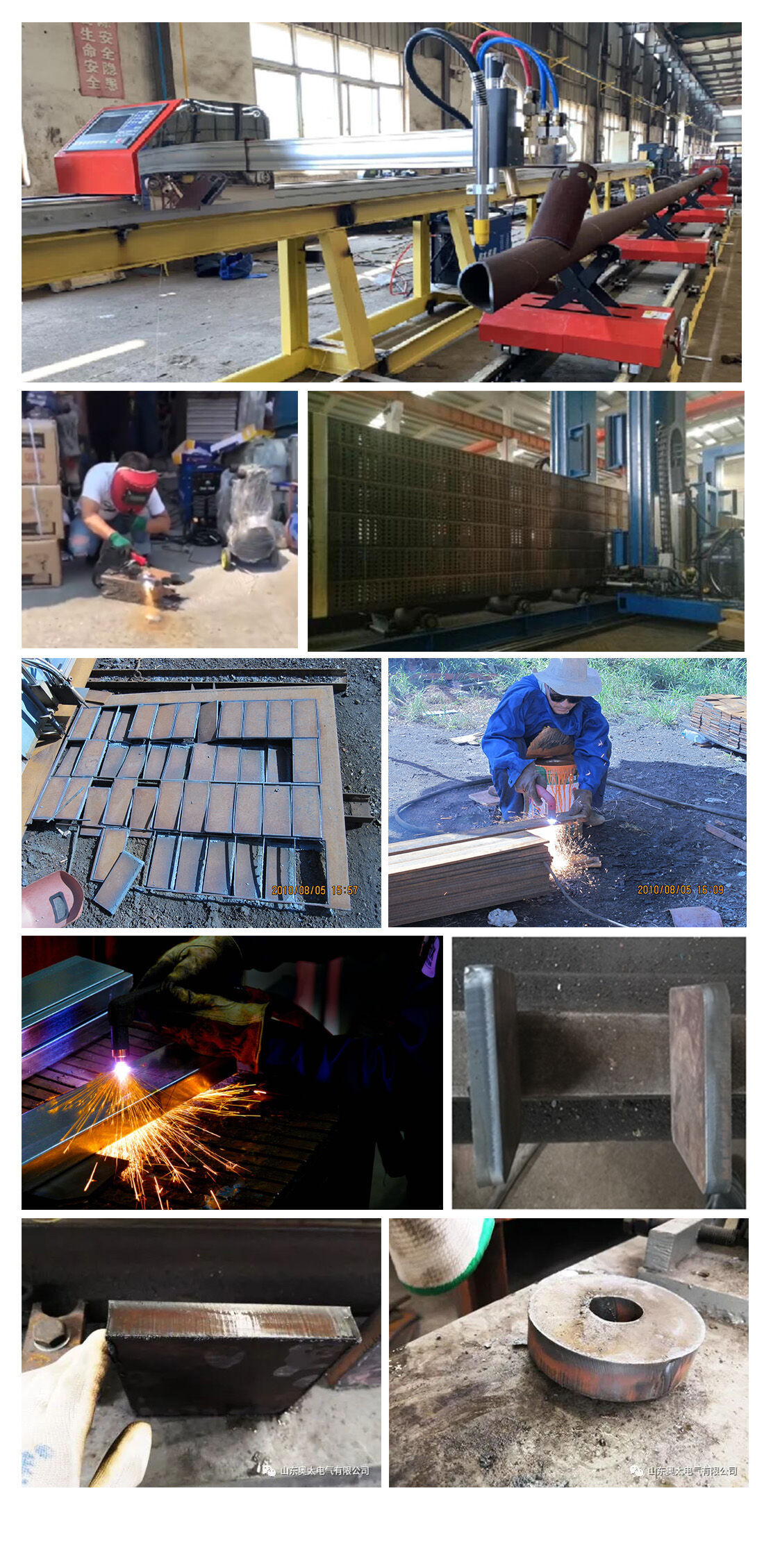

ACUT 60 100 120.jpg


  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Ground cable L=3m

  • 1 Pressure-reducing valve

  • 1 Plasma torch
