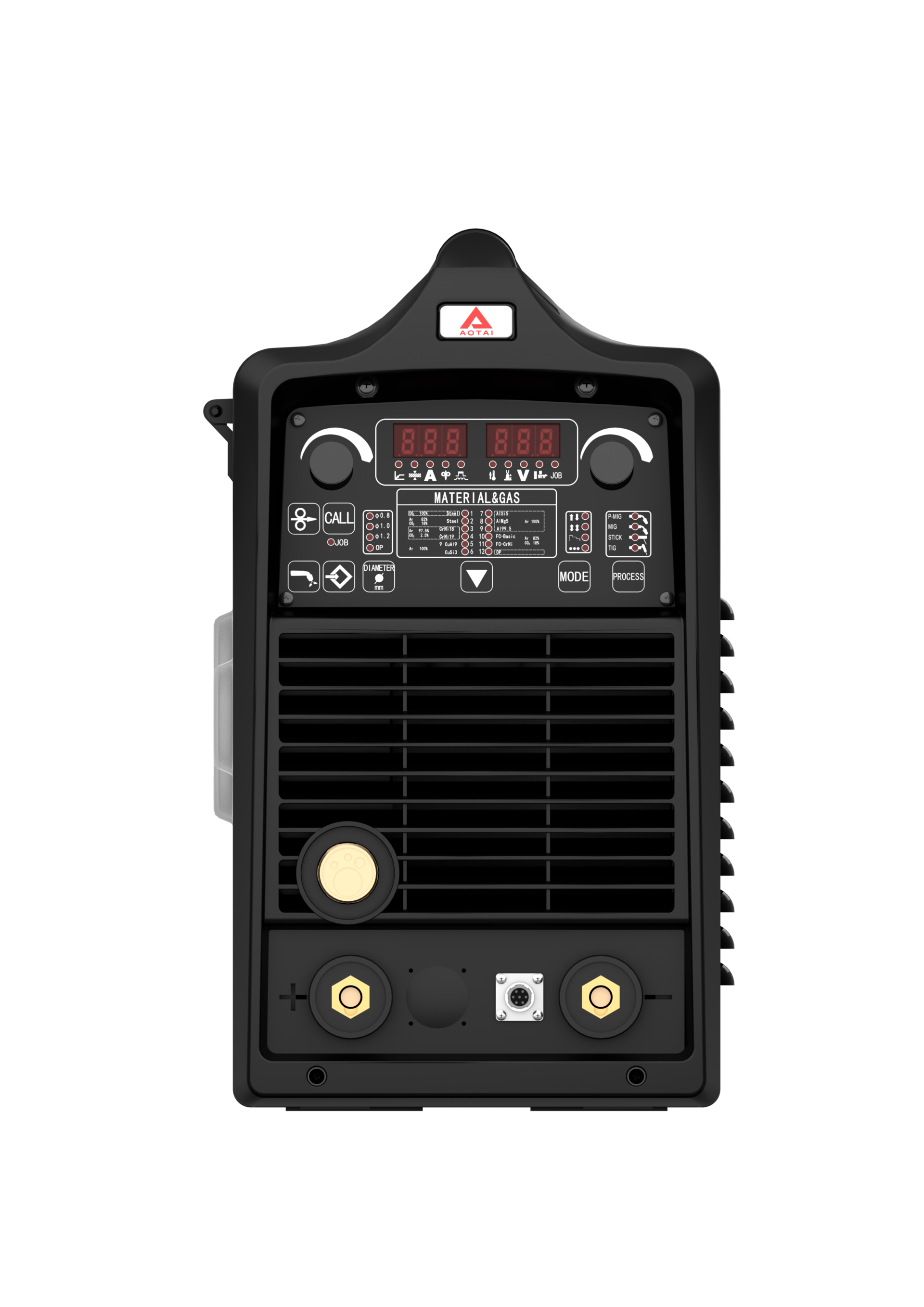

AMIG-280PM

AMIG280PM series is a portable welding machine that equips a built-in 4-roller wire feeding mechanism. It is specially designed for light industry, which enjoys light weight, small size, easy transport, and stable wire feeding. AMIG280PM can be applied to weld aluminum sheets, carbon steel, and stainless steel.


Output t36.png t33.png 20210929155048852.jpg@!jw1200 20210929155048791.jpg@!jw1200 t12.jpg 微信图片_20220317091517.jpg t10.jpg       Input t39.png  60.png


Process t20.jpg


Materials t45.png t46.png t47.png t48.png t49.png                                             20210929155047718.jpg@!jw1200

Share：

Inquiry
Features
Specification

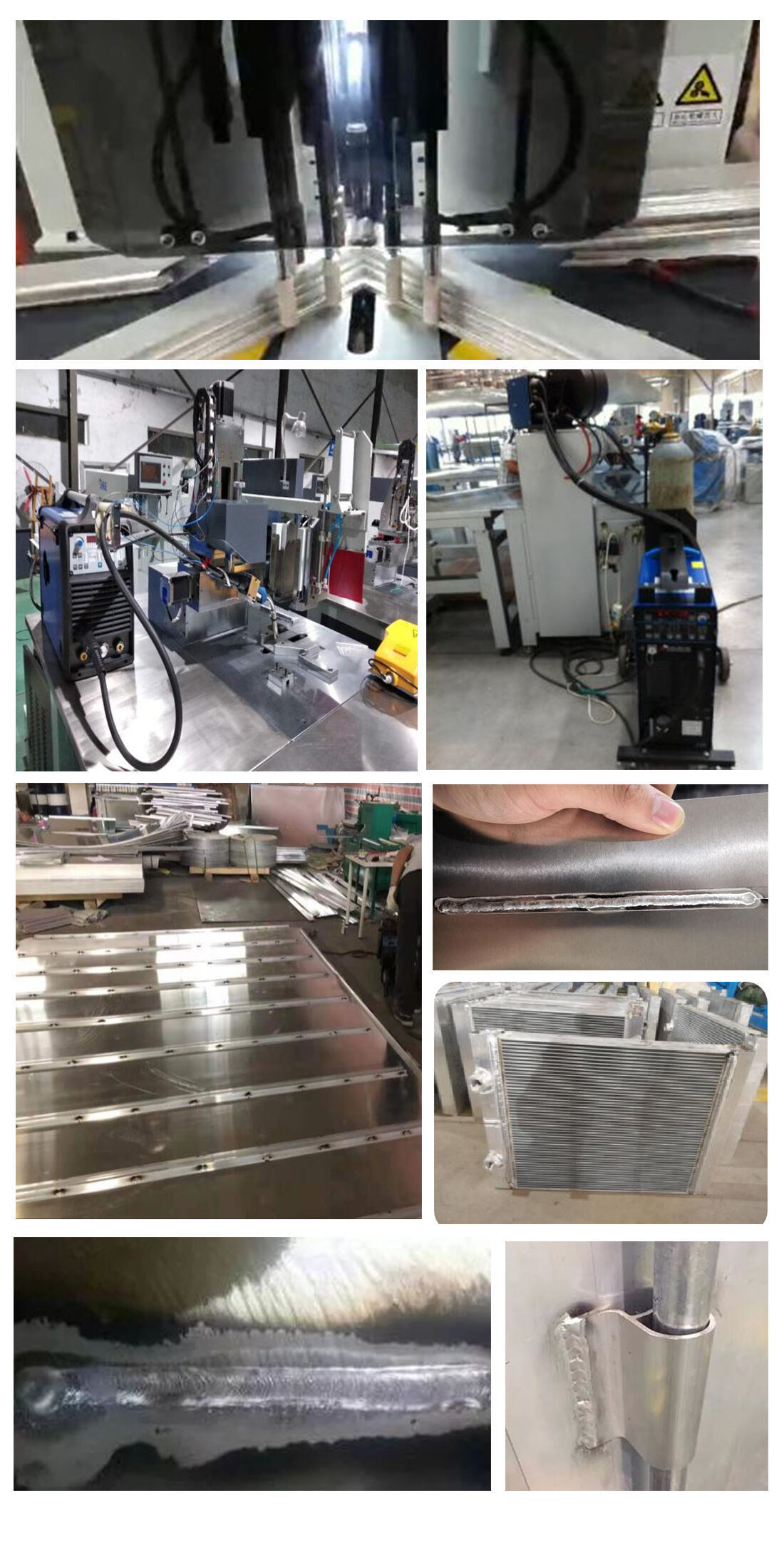

Application
Accessories
Download

  • Excellent sheet welding performance: new numerical control system and perfect combination of exact arc control algorithm

  • Sheet welding expert: especially suitable for aluminum alloy sheet welding with a thickness from 0.7mm to 4mm

  • Precise wire feeding and stable arc: dual-core and double closed loop wire feeding control system+ dual digital grating feedback control

  • Multiple welding modes: single-pulse, double-pulse, CV, MMA, TIG

  • Built-in wire feeder design: small in size and light in weight, easy to move

  • Synergic function: easy to operate and control

  • Standard digital interface: convenient to work together with automation equipment



AMIG280PM
Rated input voltage/frequency (Hz)3 phase, 480V±10%, 60Hz
Rated input capacity (KVA)14.3
Rated input current (A)17
Duty cycle (40̊C)40%@280A
OCV (V)107
VRD (V)16
Output current range (A)20-280
Output voltage range (V)15-28
Wire size (mm)0.8,1.0,1.2
Protection classIP21S
Dimension (mm)630*280*480
Weight (kg /lb)34/74.8



  • 1 Power source

  • 1 Connected primary cables L=3m

  • 1 Ground cable L=3m

  • 1 Gas cooled torch L=3m
