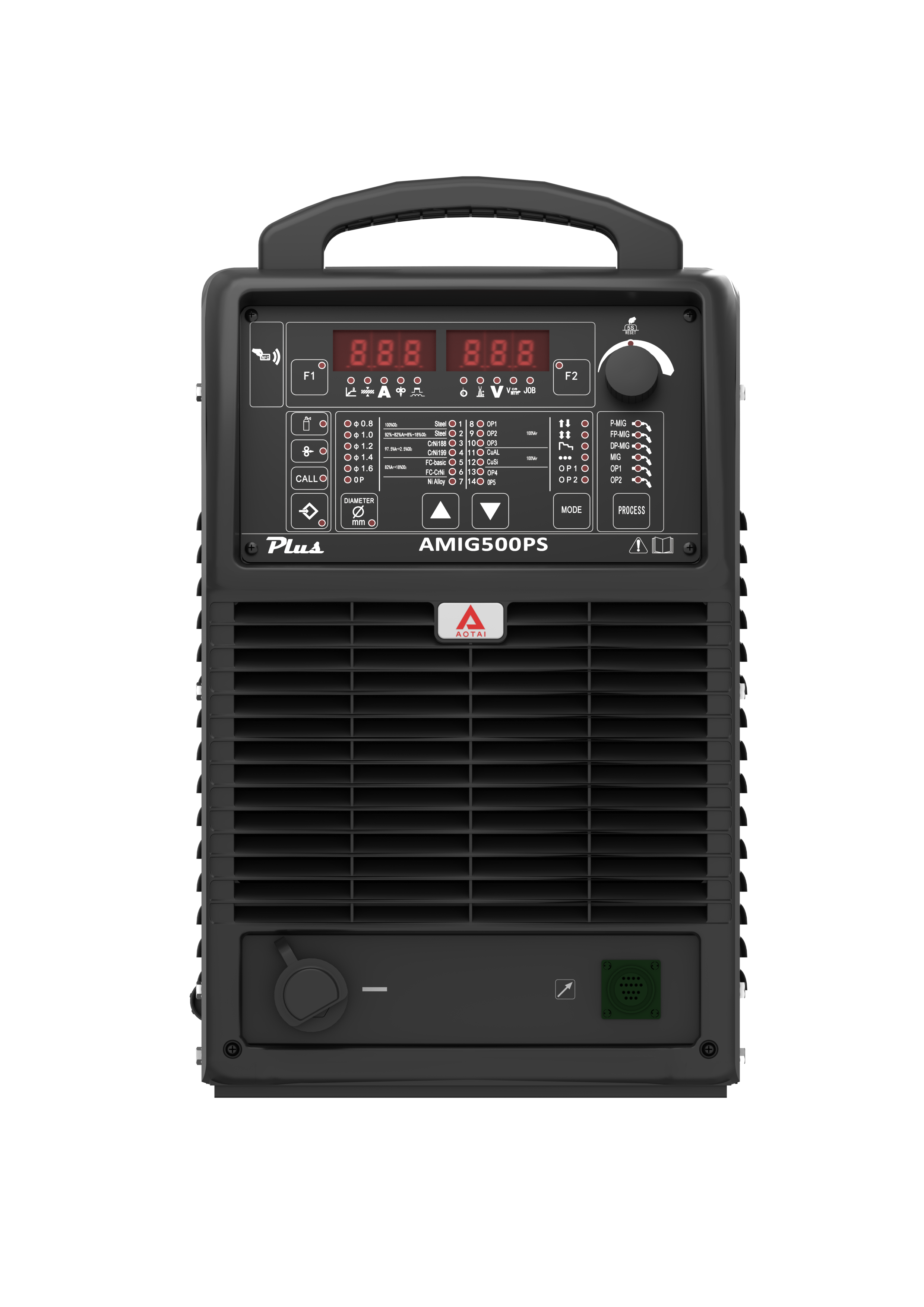

AMIG-400/500/630PS PLUS series is a pulse welding equipment with high efficiency, high quality and high deposition rate. It can conduct fine control to waveform and realize the breakthrough for multiple advanced MIG process through the high-speed ARM 32-bit digital chip. It also adopts new-generation high-frequency main circuit platform from AOTAI, which can precisely control arc forms and greatly improved the welding effects.
Output
Input
Process
Materials
Share：
High-frequency inverter: 60kHz frequency; real-time fine droplet energy management, concentrated and stiff arc
Stable arc: 45m welding cable to weld carbon steel under pulse mode, stable low-current welding
Precise current: extended applicable range for shielding gas, precise consistency between electrode extension and current
Easy arc starting: freely switched arc starting mode, high arc starting success rate
Platformization design: pulse, double pulse, rapid pulse, deep penetration, CV and other advanced processes modules, even customized process modules are available
Twin-core control: twin 32-bit high-speed high-precision ARM processor, nanosecond-level responding speed
Stable wire feeding: new twin closed loops wire feeding control system + large-torque permanent magnet motor
One-key operation: save and recall 100 sets of parameters
Specific personnel operating: bound through IC card to achieve process controlling and quality tracing
ECO design
1 Power source
1 Connected primary cable L=3m
1 Water cooling machine
1 Ground cable L=3m
1 Water-cooled (or Gas-cooled) torch L=3m
1 Wire feeder with Europe connection
1 Trolley
1 wire feeder cable L=2m
