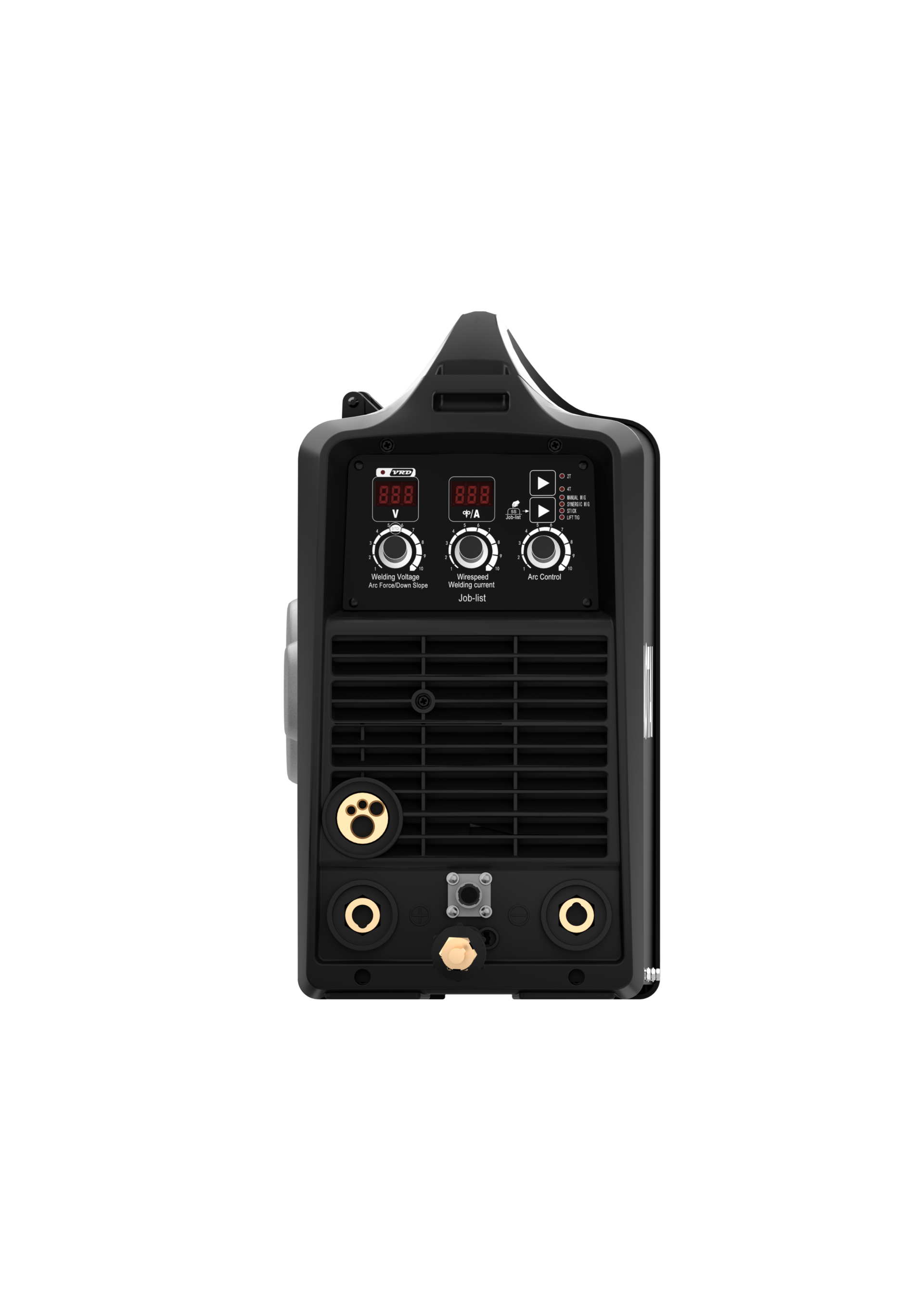

AMIG-210M

AMIG210M series is a portable welding machine. It is powered by a 230V power supply and specializes in performing multi-process welding on carbon steel, stainless steel, aluminum, and other materials. AMIG210M is a product specially designed for civil /thin sheets applications.


Output t36.png t33.png t12.jpg 20210929155048852.jpg@!jw1200       Input one phase.png  60 .png       Process t20.jpg


Materials t45.png t46.png t48.png                                                             20210929155043253.jpg@!jw1200  20210929155047718.jpg@!jw1200

Share：

Inquiry
Features
Specification
Application
Accessories
Download

  • Multi-process: MMA, lift TIG, MIG/MAG, FCAW-G/S,  (pulse-AMIG210PM)

  • Portable design: 17kg, robust carrying handle, reserved strap  mounting holes

  • Built-in wire feeding mechanism: 5kg (200mm) and 15kg  (270mm) Available welding wire spool

  • Optional various torches: push welding torch, pull welding torch

  • Safe and reliable: VRD design, multiple insulations for protection  inside the welding machine

  • Multiple protections: over-current and over-voltage, fault  self-diagnosis, error code display



AMIG210M
Rated input voltage/frequency (Hz)1 phase, 230V±10%, 60Hz
Rated input capacity (KVA)9.7
Rated input current (A)42
Duty cycle (40̊C)35%@210A
ModesMMA /TIG /MIG
OCV (V)63 /13.6 (VRD ON)
Output voltage range (V)10-26
Spool weight (kg)5/15
Wire Diameter (mm)0.8, 1.0, 1.2
Trigger mode2T /4T
Output current range (A)30-210(MMA) /25-200
Protection classIP21S
Insulation classF
Dimension (mm)540*220*420
Weight (kg /lb)17 /37.4





  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 Ground cable L=3m

  • 1 Gas cooled torch

  • Spool gun (optional)
