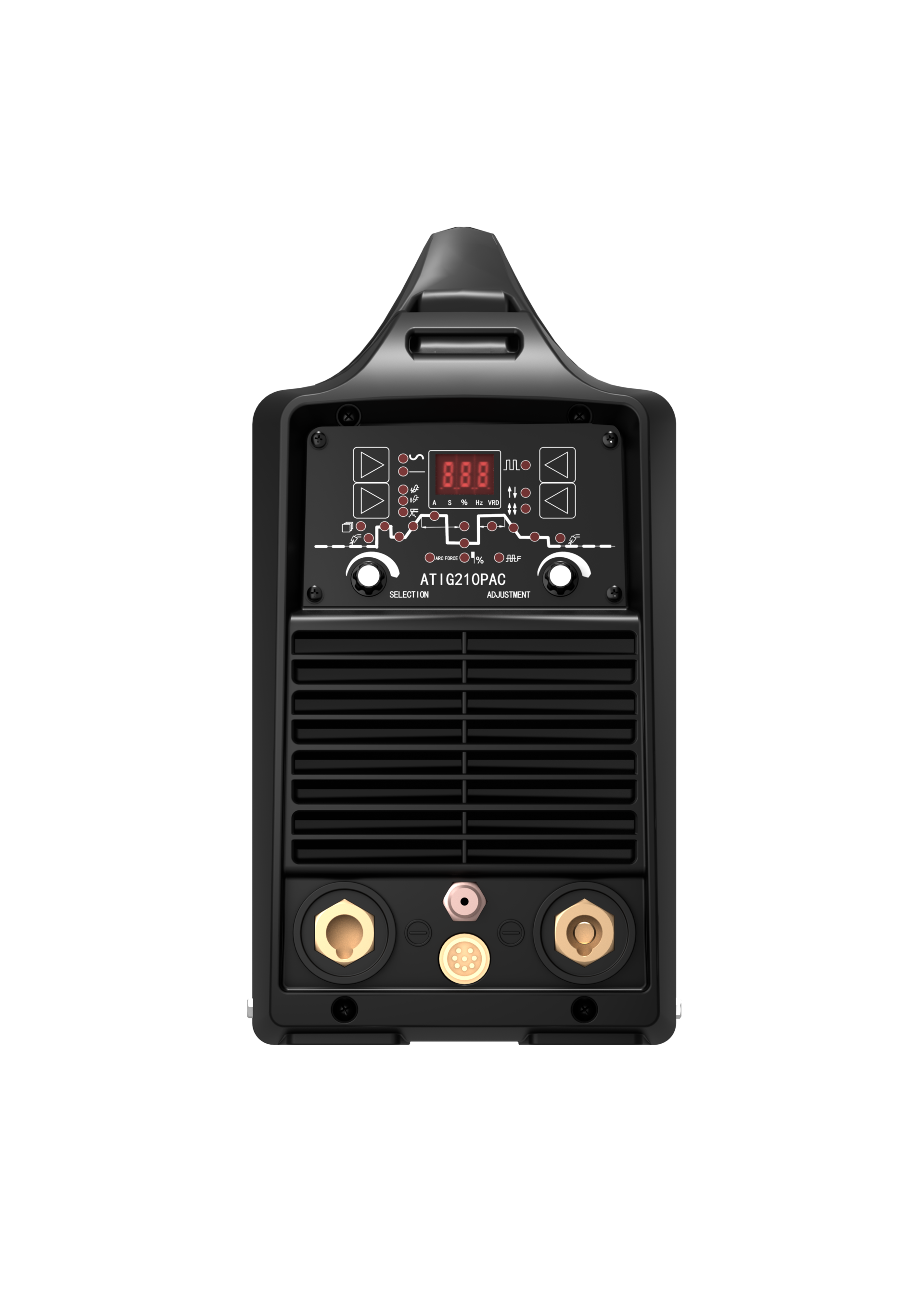

ATIG210PAC

ATIG-PAC Series is digital models with high end MCU technology, suitable for both automatic application and manual welding. It offers multiple parameters adjustment to ensure perfect welding for stainless steel (DC) welding and Aluminum (AC) welding.


Output t34.png t37.png 微信图片_20220317091517.jpg 20210929155048852.jpg@!jw1200       Input t40.png  60 .png       Process 20210929155049592.png@!jw1200  20210929155051607.jpg@!jw1200


Materials t45.png t46.png t51.png t49.png t48.png                                                       20210929155043253.jpg@!jw1200  20210929155047718.jpg@!jw1200


Share:

Inquiry
Features
Specification
Application
Accessories
Download
  • Outstanding technology: portable and digital, highly efficient inverter

  • Applicable for heat-sensitive materials: perfect welding quality of heat-sensitive material and aluminum

  • Fully controlled AC waveform: AC balance, AC frequency, and others

  • Fully controlled pulse wave: pulse duty cycle, base current, and high-speed pulse frequency

  • Multiple controllable parameters: pre-gas, post-gas, up-slope, down-slope,  initial current, and final current

  • HF/Lift TIG: outstanding arc starting performance

  • Multiple trigger mode: 2T for short welds and 4T for long welds

  • Fast dynamic response: good arc characteristics

  • PFC module: to reduce harmonic wave input and improve efficiency of power source, which meets needs of 16A input (PFC model ONLY)

  • Save and recall: up to 10 sets of parameters



ATIG210PAC
Rated input voltage/frequency (Hz)1 phase, 230V±10%, 60Hz
Rated input capacity (KVA)5.7
Rated input current (A)25
Duty cycle (40̊C)35%@210A
OCV (V)60
MMAOutput current range (A)10-170
Arc force (A)0-100
Hot start (A)0-100
TIGOutput current (A)3-210
Pre-gas /post-gas (s)0.1-9.99 /0.1-60
Initial /final current (A)3-210 /3-210
Up-slope /down-slope time (s)0-10 /0-15
Peak current (A)3-210
Base current (A)3-210
Pulse frequency (Hz)DC: 0.2-500 /AC: 0.2-20
Pulse duty cycle5-95%
AC frequency (Hz)10-250
AC balance-40%±40%
Trigger mode2 /4T, Spot, Repeat
Arc ignition methodHF /Lift
Protection classIP23S
Insulation classF
Dimension (mm)430*160*300
Weight (kg /lb)11.5 /25.2





  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 TIG torch (with accessories)

  • 1 Ground cable L=3m with clamp and quick plug

  • 1 Quick plug
