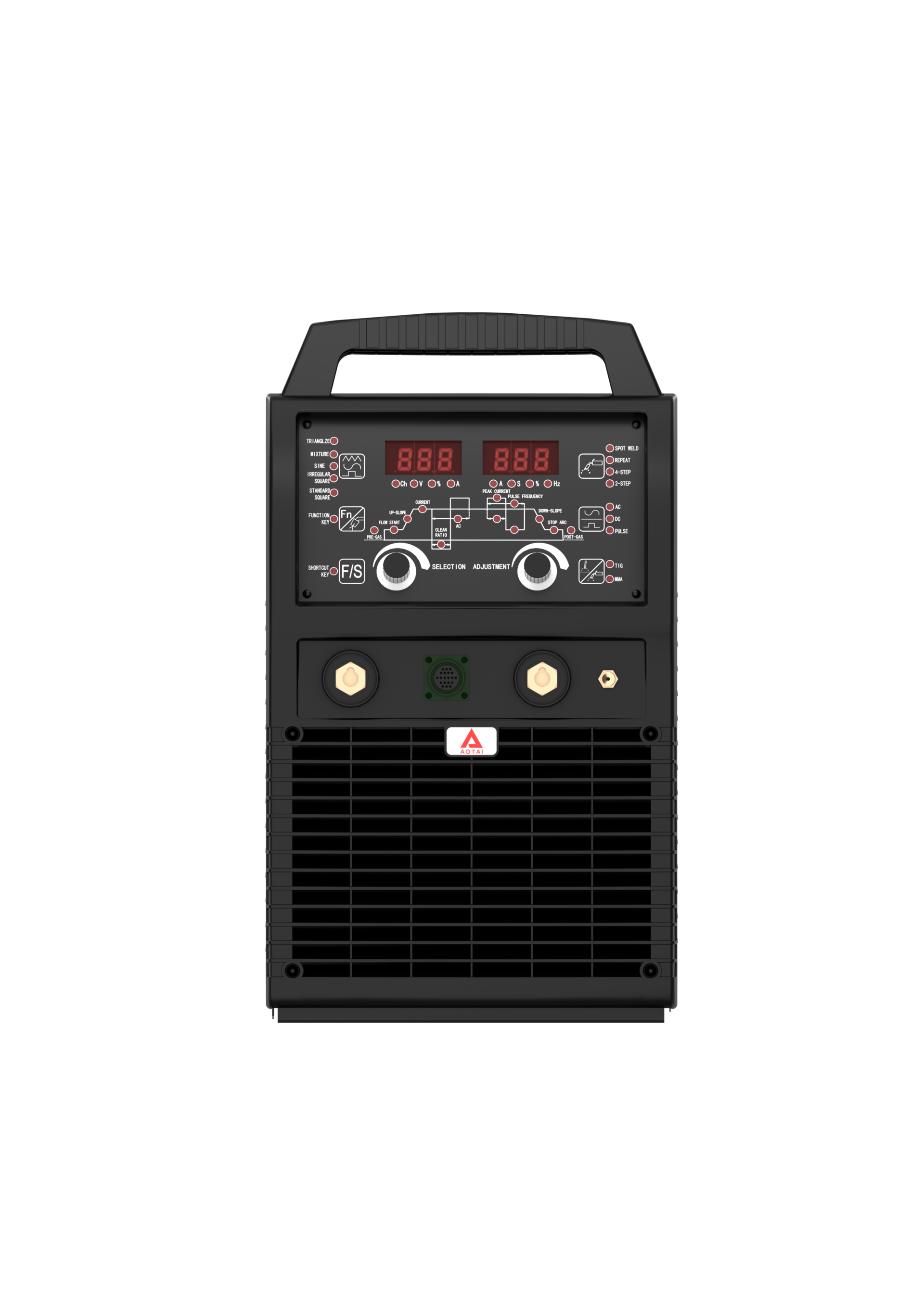

ATIG-PAC-315III/500III/630III

ATIG-PACIII series is fully digital models with high end DSP technology, it is suitable for both automatic application and manual welding. Compared with ATIG-PAC series, it offers advanced wave control technology which brings more flexibility for thinner /thicker material during critical aluminum welding. Smart parameters adjuestment brings cleanest, deepest penetration and perfect welding result for high welding quality demanding.

Output Input

Process

Materials

Inquiry

Features

Specification

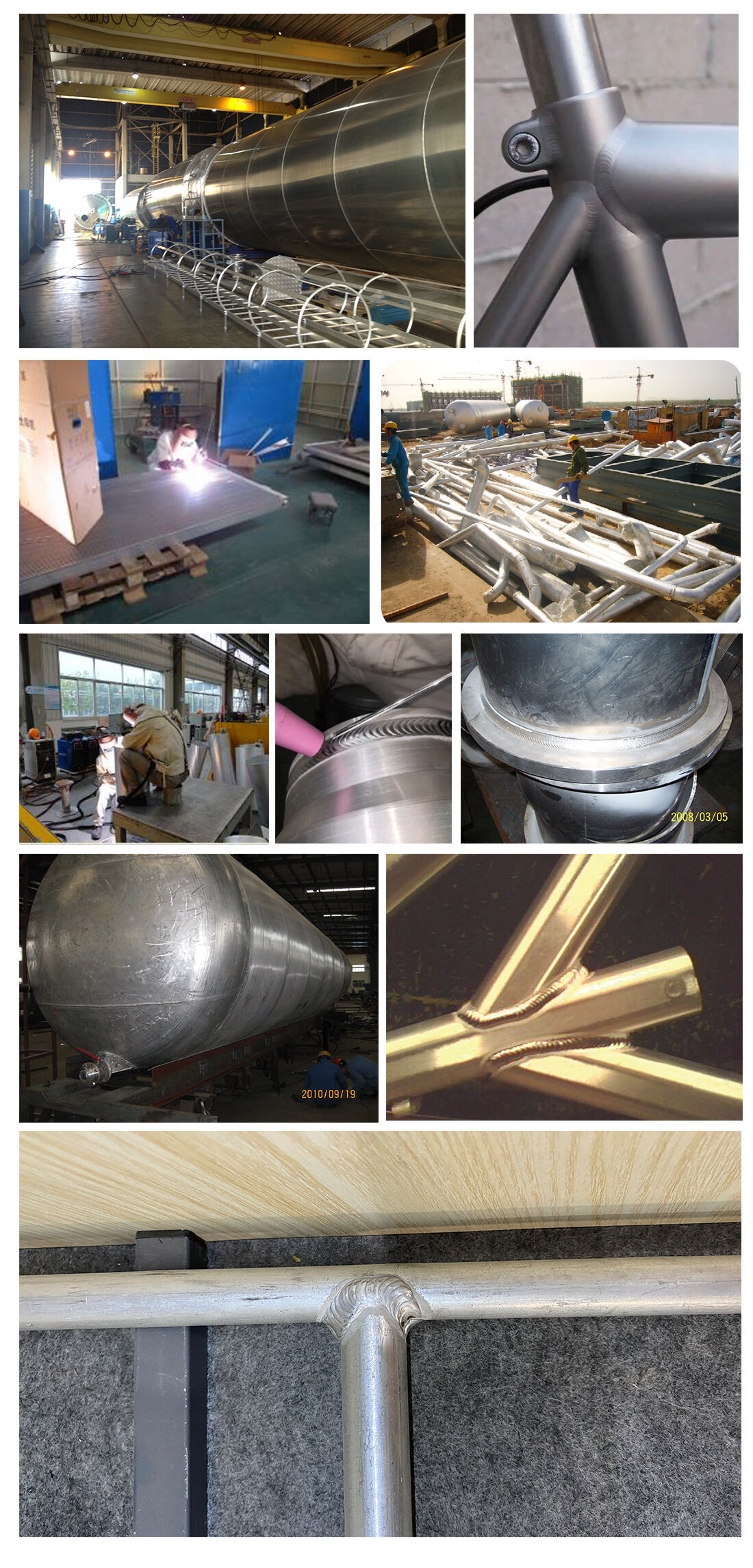

Application

Accessories

Download

Fully digital inverter: the greatly improved current increasing speed during arc starting makes the aluminum welding seam beautiful
Timing function: record working hours of the welding machine
Electrode diameter selection: to reduce wear and tear of tungsten electrode during arc starting
Five kinds of waveform: standard square, Irregular square, Sine wave, Triangle wave, and Mixture wave; applicable for various thicknesses of the workpiece
Synchronous mutual arc feature
Preset function: all parameters can be precisely preset
Save and recall: up to 30 sets of welding parameters
Remote control: to adjust welding current and peak current
Digital display: current and voltage
Adjustable MMA parameters: arc starting current, arc force, knee-point voltage, and hot start current/time for easy arc starting
AC MMA process: optional
Work together with wire feeder: for customized models

				ATIG315PAC III	ATIG500PAC III	ATIG630PAC III
Rated input voltage/frequency (V/Hz)				3 phase, AC480V±10%, 60Hz
Rated input capacity (KVA)				13.6	25.4	34.8
Rated input current (A)				16.4	30.6	41.9
Duty cycle (40℃)				60%@315A	60%@500A	60%@630A
OCV (V)(MMA /TIG)				45/79	42/77	42/79
TIG	DC TIG	Output current range (A)		5-315	10-500	10-630
	Pulse TIG	Pulse frequency (Hz) (AC /DC)		0.2-250 /0.2-999
		Peak current (A)		5-315	10-500	10-630
		Base current (A)		5-315	10-500	10-630
		Pulse duty cycle		15%-85%
	AC TIG	Wave form		Square, Irregular square, Sine, Triangle, Mixture
		AC frequency (Hz)		40-250
		AC balance		-50%~+40%
		Mixture	Frequency (Hz)	0.5-10
			Duty cycle	15%-85%
	Pre-gas /post gas (s)			OFF-10 /OFF-60
	Initial /final current (A)			5-315/5-315	10-500/10-500	10-630/20-630
	Up-slope /down-slope (s)			OFF-10 /OFF-15
	Trigger mode			2/4T, Repeat, Spot
	Arc ignition method			HF /Contact
MMA	Output current (A)			5-315	10-500	10-630
	Arc force (A)			10-200
	Knee-point voltage (V)			15-30
	Hot start duration (s)			0.1-2
	Hot start (A)			10-200
Job channels				30
Dimension (mm)				660320560	665353778	690385825
Weight (kg /lb)				53 /117	80 /176.6	90/198.6

1 Power source
1 Connected primary cable L=3m
1 Welding cable L=3m
1 Ground cable L=3m
1 TIG torch (water cooled)
Water cooling machine (Optional)
Trolley (Optional)
Remote control unit (Optional)
Foot pedal (Optional)
