GTAW

‹

›

‹

  • ATIG-200P
  • ATIG-200P

›

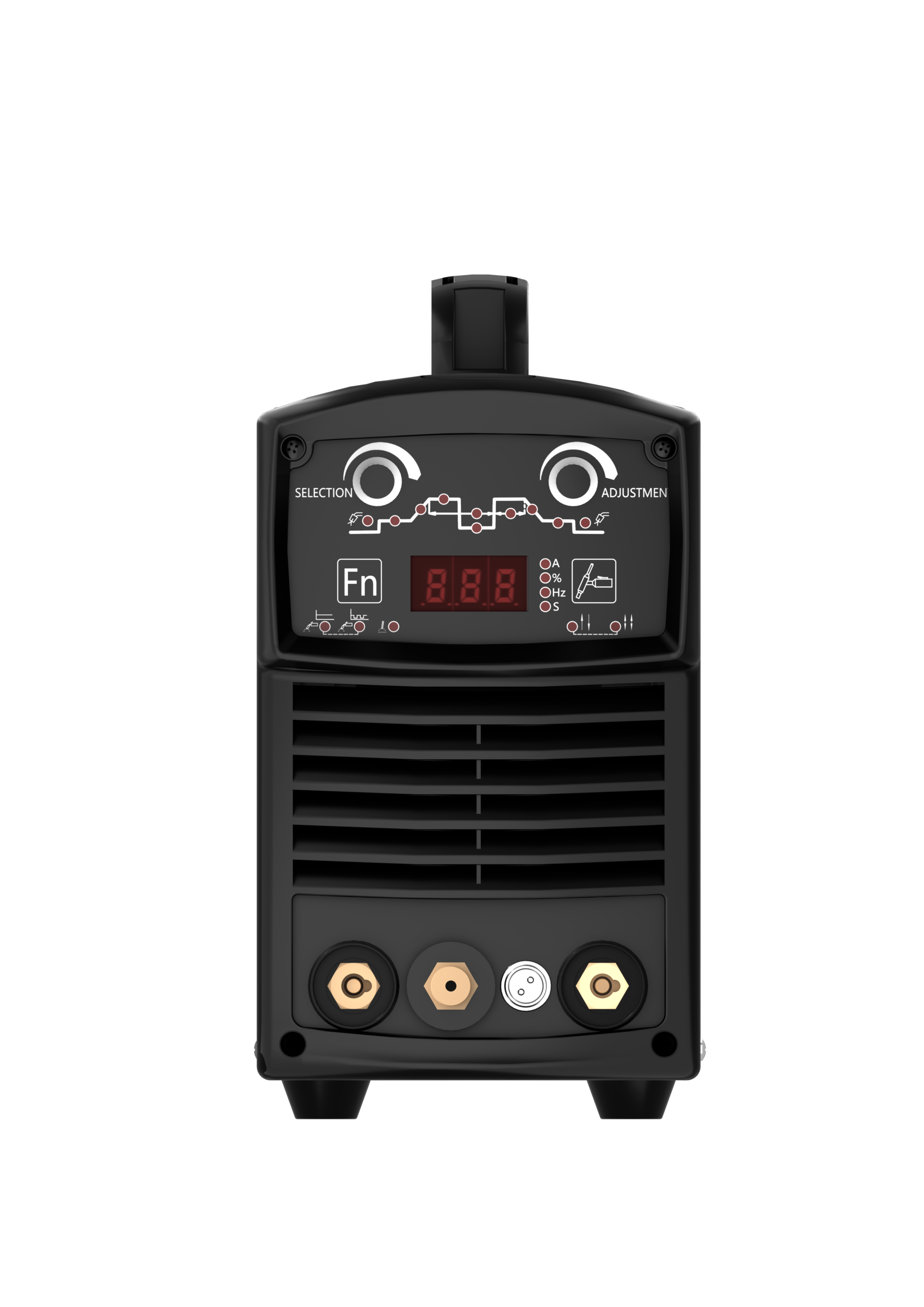

ATIG-200P



Output t34.png t33.png 微信图片_20220317091517.jpg 20210929155048852.jpg@!jw1200 t64.png       Input t40.png  60 .png


Process 20210929155049592.png@!jw1200  20210929155051607.jpg@!jw1200


Materials t45.png t46.png t51.png t49.png


Share：

Inquiry
Features
Specification
Application
Accessories
Download

  • Multi-process: DC TIG /PULSE TIG /MMA

  • VRD feature

  • MCU control: adjustable parameter such like Peak current, base current, duty cycle and the frequency,

  • Multi-parameters adjustment: up-slope time /down-slope time /pre-gas /post-gas

  • Multi-protection against overheat, over current, over voltage, etc



ATIG200P
Rated input voltage/frequency (Hz)1 phase, 230V±10%, 60Hz
Rated input capacity (KVA)6.6
Rated input current (A)30
Duty cycle (40̊C)40%@200A
OCV (V)54 /9 (VRD)
MMAOutput current range (A)20-160
Arc force (A)50
Hot start (A)50~100
TIGOutput current range (A)10-200
Pre-gas /post-gas (s)0.1-15 /0.1-15
Initial /final current (A)10-200 /10-200
Up-slope /down-slope time (s)0.1-10 /0.1-10
Base current (A)10-200
Pulse frequency (Hz)0.2-20
Pulse duty cycle15-85%
Trigger mode2 /4T
Arc ignition methodHF
Protection classIP21S
Insulation classF
Dimension (mm)389*155*299
Weight (kg /lb)9.5 /21



TIG200 PROpsd.jpg


  • 1 Power source

  • 1 Connected primary cable L=3m

  • 1 TIG torch (with accessories)

  • 1 Ground cable L=3m with clamp and quick plug

  • 1 Quick plug
